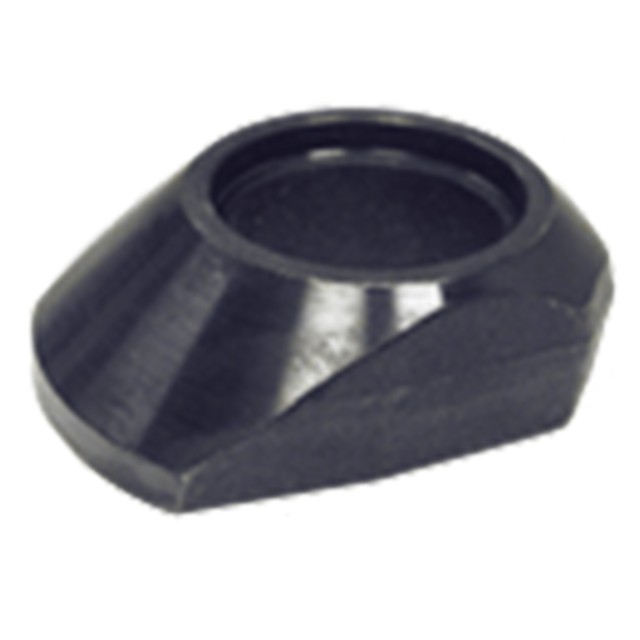

Roemheld Short Clamping Arms
7250 psi maxShort Clamping Arms allow operating pressures up to 7250 psi. Please note, these arms have a very limited reach, so they cannot be used with all Swing-Clamp body styles.
Mounting & Fluid Supply
Mount arm on the tapered piston rod at desired orientation, then fasten with the piston-rod nut included with swing clamp.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 4142 Alloy Steel | - | - | Yes | Yes |
Parts Specification
| Clamp Size | A | B | C | D | E | Weight (lbs) |
| 5 series | 2.40 | 0.906 | 1.89 | 0.24 | 1.46 | 0.5 lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
