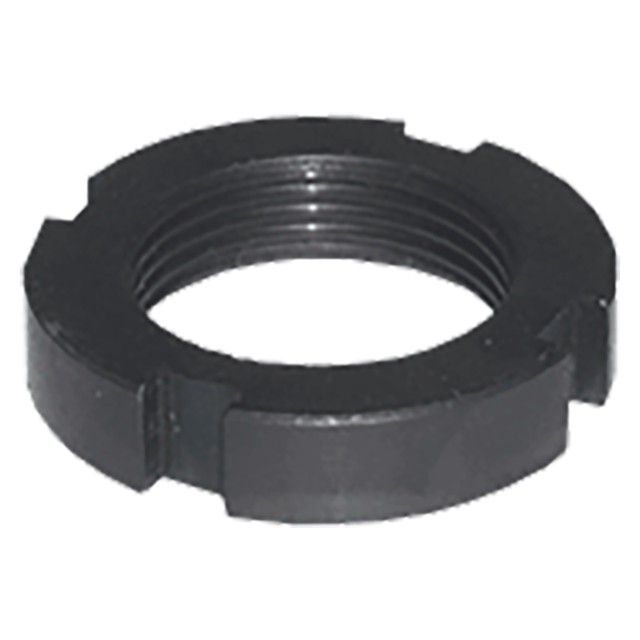

Roemheld Lock Rings
These heavy-duty Lock Rings are used to secure Swing Clamps that are mounted in a tapped or bored hole.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| Clamp Size | A Diameter (mm) | B Diameter+0/-0.008 (mm) | C (mm) | D (mm) | E (mm) |
| 7 series | 5.188mm | 3.937mm | 0.630mm | 0.197mm | M90x2mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
