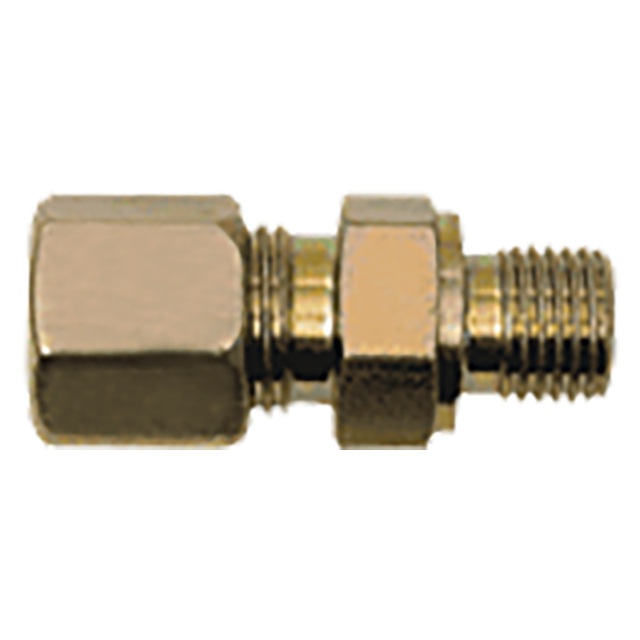

Roemheld Port Fitting
Straight fitting for any standard 1/4" BSPP port. Compression nut accepts standard 5/16" O.D. tubing. Compression fittings are designed to secure heavy-wall tubing using a bite-type ferrule and compression nut. These fittings accept The standard 5/16" O.D. tubing (cut off straight and deburred) as well as Fixture Hose and Heavy-Duty Hose with compression-type tube ends.
Application Information
Design Considerations & Safety Precautions
7250 psi max imum operating pressure. Use these fittings only with The standard steel tubing and hydraulic hose. The standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, 0.065" wall thickness, 22,800 psi minimum burst pressure.Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | - | Yes | Yes |
Parts Specification
| Maximum Operating Pressure (PSI) | Fits Port Size | Tubing O.D. Size (Inch) |
| 7500 PSI | 1/4" BSPP | 5/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
