Product Specifications

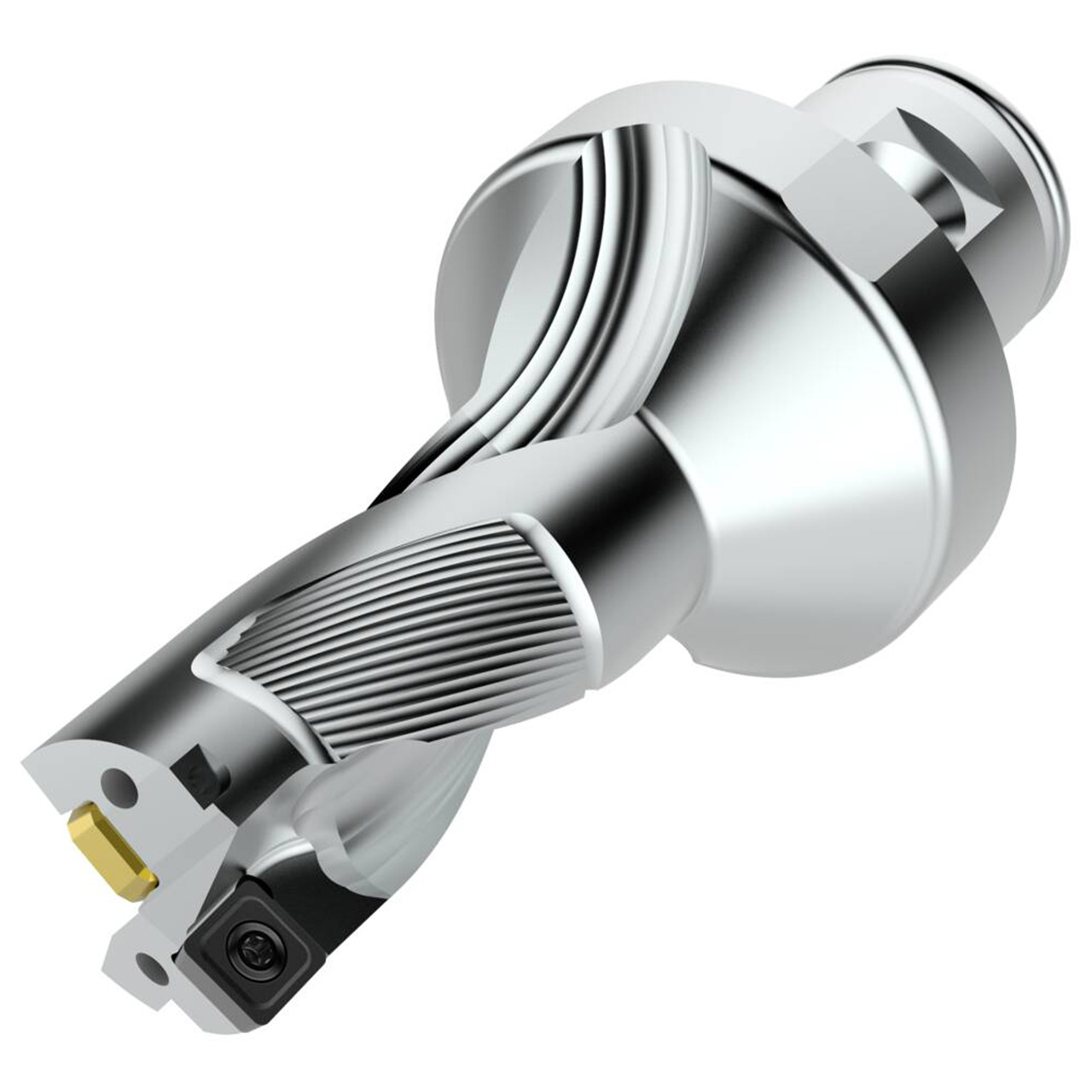

| Manufacturer Part Number | 03080800 |
| Cutting Diameter (Decimal Inch) | 1.250" |
| Cutting Diameter (mm) | 31.75mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.211" |
| Minimum Cutting Diameter Internal (mm) | 30.75mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 1.272" |
| Connection Diameter Machine Side (Decimal Inch) | 1.102" |
| Connection Diameter Machine Side (mm) | 28.00mm |
| Flange Diameter (Decimal Inch) | 1.969" |
| Flange Diameter (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.102" |
| Shank Diameter (mm) | 28.00mm |
| Shank Length (Decimal Inch) | 1.221" |
| Shank Length (mm) | 31.00mm |
| Usable Length (Decimal Inch) | 2.520" |
| Usable Length (mm) | 64.00mm |
| Overall Length (Decimal Inch) | 4.921" |
| Overall Length (mm) | 125.00mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.020" |
| Adjustment Limit Minimum (mm) | 0.50mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.011" |
| Adjustment Limit Maximum (mm) | 0.28mm |
| Shank Type | ABS Compatible |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 88 Degree |
| Product Type | Indexable Insert Drill |
