Product Specifications
| Manufacturer Part Number | 03080831 |
| Cutting Diameter (Decimal Inch) | 1.750" |
| Cutting Diameter (mm) | 44.45mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.711" |
| Minimum Cutting Diameter Internal (mm) | 43.45mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 1.789" |
| Connection Diameter Machine Side (Decimal Inch) | 1.969" |
| Connection Diameter Machine Side (mm) | 50.00mm |
| Flange Diameter (Decimal Inch) | 1.969" |
| Flange Diameter (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.102" |
| Shank Diameter (mm) | 28.00mm |
| Shank Length (Decimal Inch) | 1.221" |
| Shank Length (mm) | 31.00mm |
| Usable Length (Decimal Inch) | 3.504" |
| Usable Length (mm) | 89.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.020" |
| Adjustment Limit Minimum (mm) | 0.50mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.016" |
| Adjustment Limit Maximum (mm) | 0.41mm |
| Shank Type | ABS Compatible |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 88 Degree |
| Product Type | Indexable Insert Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

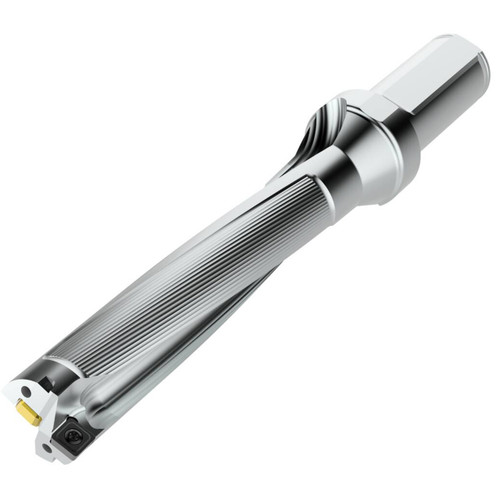

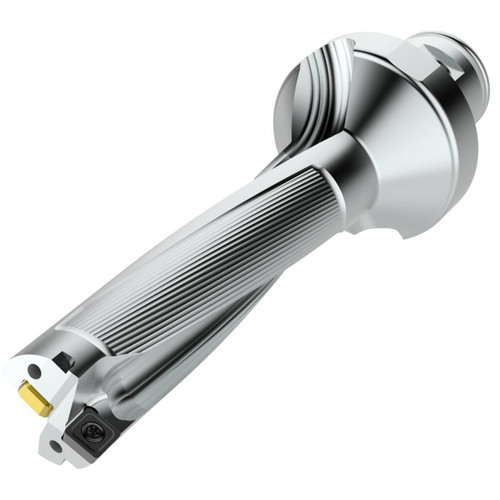

Related Products
