Seco Tools 03272987 | 0.504" Inscribed Circle Diameter x 0.020" Radius x 0.156" Thickness 8 Cutting Edge Carbide Octomill Insert

$34.00 $27.91
(You save $6.09)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5040"
Inscribed Circle (mm):
12.81mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.97mm
interval quantity:
10
SKU:
23287187
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Seco Tools 03272987 | 0.504" Inscribed Circle Diameter x 0.020" Radius x 0.156" Thickness 8 Cutting Edge Carbide Octomill Insert

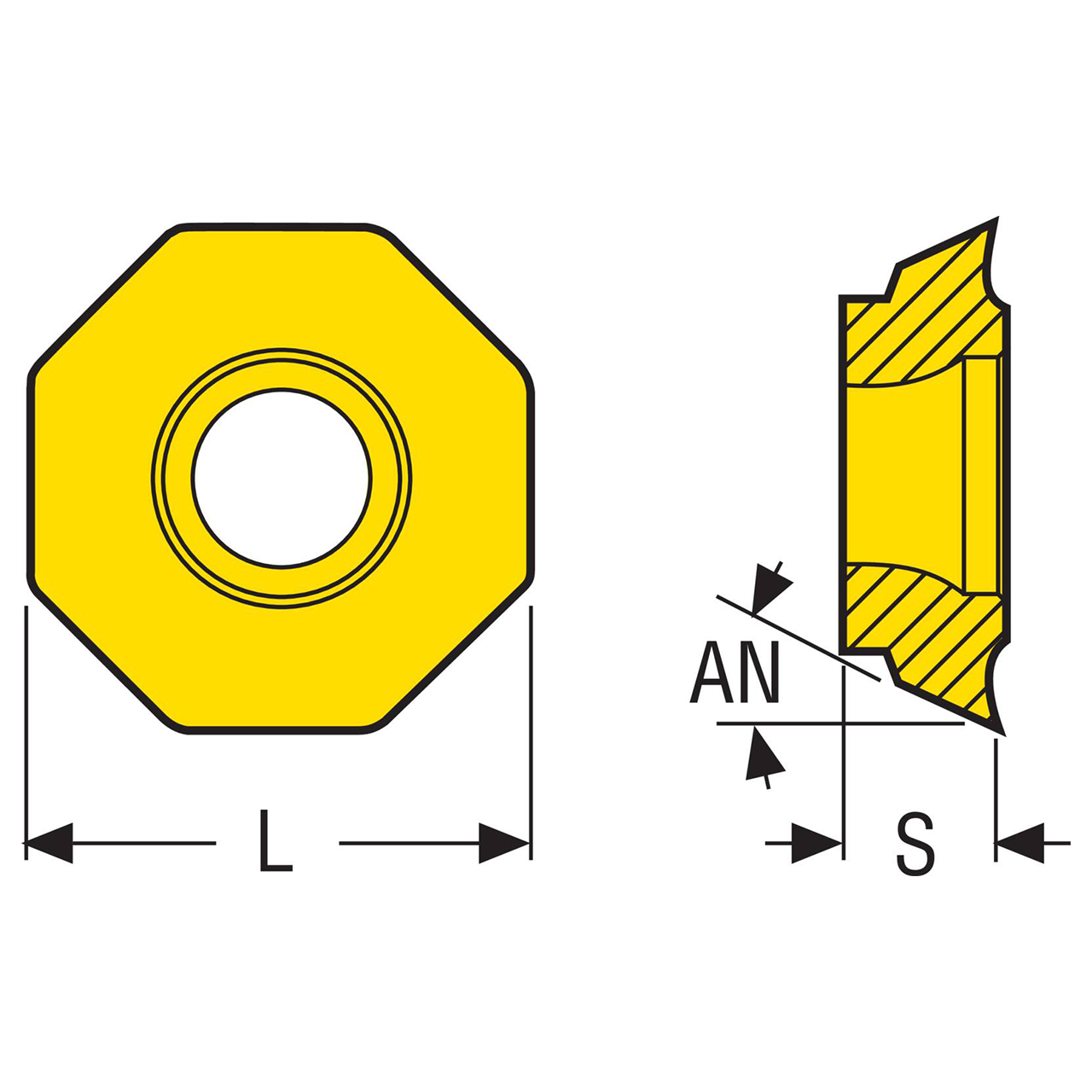

Product Specifications
Manufacturer Part Number03272987
Inscribed Circle Diameter (Decimal Inch)0.504"
Inscribed Circle Diameter (mm)12.81mm
Wiper Edge Length (Decimal Inch)0.059"
Wiper Edge Length (mm)1.50mm
Cutting Edge Effective Length (Decimal Inch)0.193"
Cutting Edge Effective Length (mm)4.90mm
Corner Radius (Decimal Inch)0.020"
Corner Radius (mm)0.50mm
Insert Thickness (Decimal Inch)0.156"
Insert Thickness (mm)3.97mm
Clearance Angle Major (Degree)26 Degree
Cutting Edge Count8
Cutting Geometry Type TechnicalD09
Pocket Seat Code of The CutterOF..05
Insert Size And ShapeOFEX05T3
Insert HandNeutral
MaterialCarbide
Product TypeOctomill Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
