| Manufacturer Part Number | 03301654 |

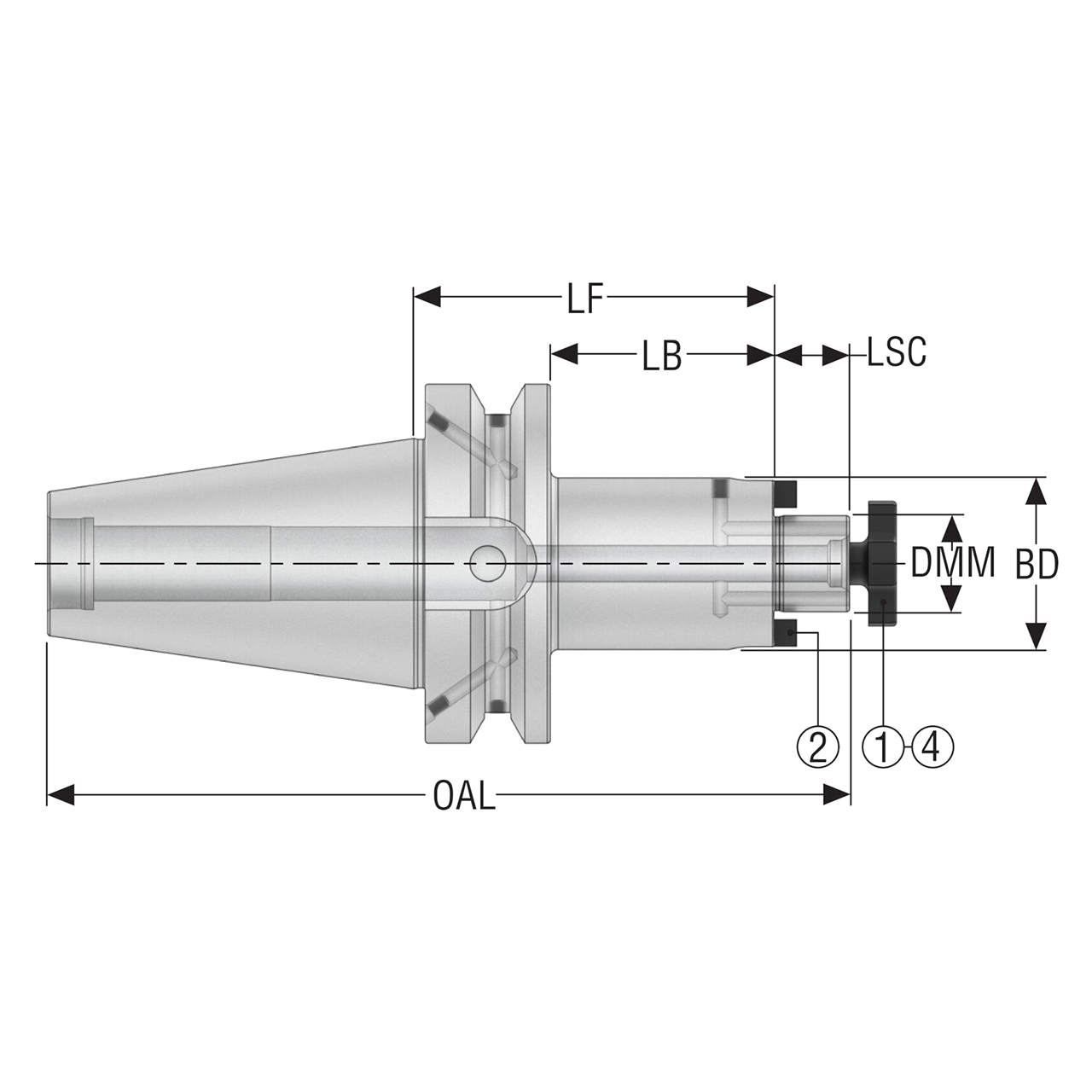

| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.866" |
| Connection Diameter Workpiece Side (mm) | 22.00mm |
| Shank Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (mm) | 22.00mm |
| Body Length (Decimal Inch) | 0.984" |
| Body Length (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 2.047" |
| Functional Length (mm) | 52.00mm |
| Clamping Length (Decimal Inch) | 0.748" |
| Clamping Length (mm) | 19.00mm |
| Overall Length (Decimal Inch) | 5.370" |
| Overall Length (mm) | 136.40mm |
| Data Chip Provision | 1 |

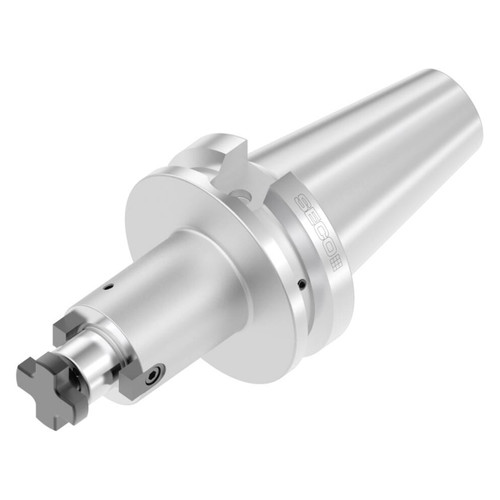

| Product Type | Shell Mill Holder |
