Product Specifications

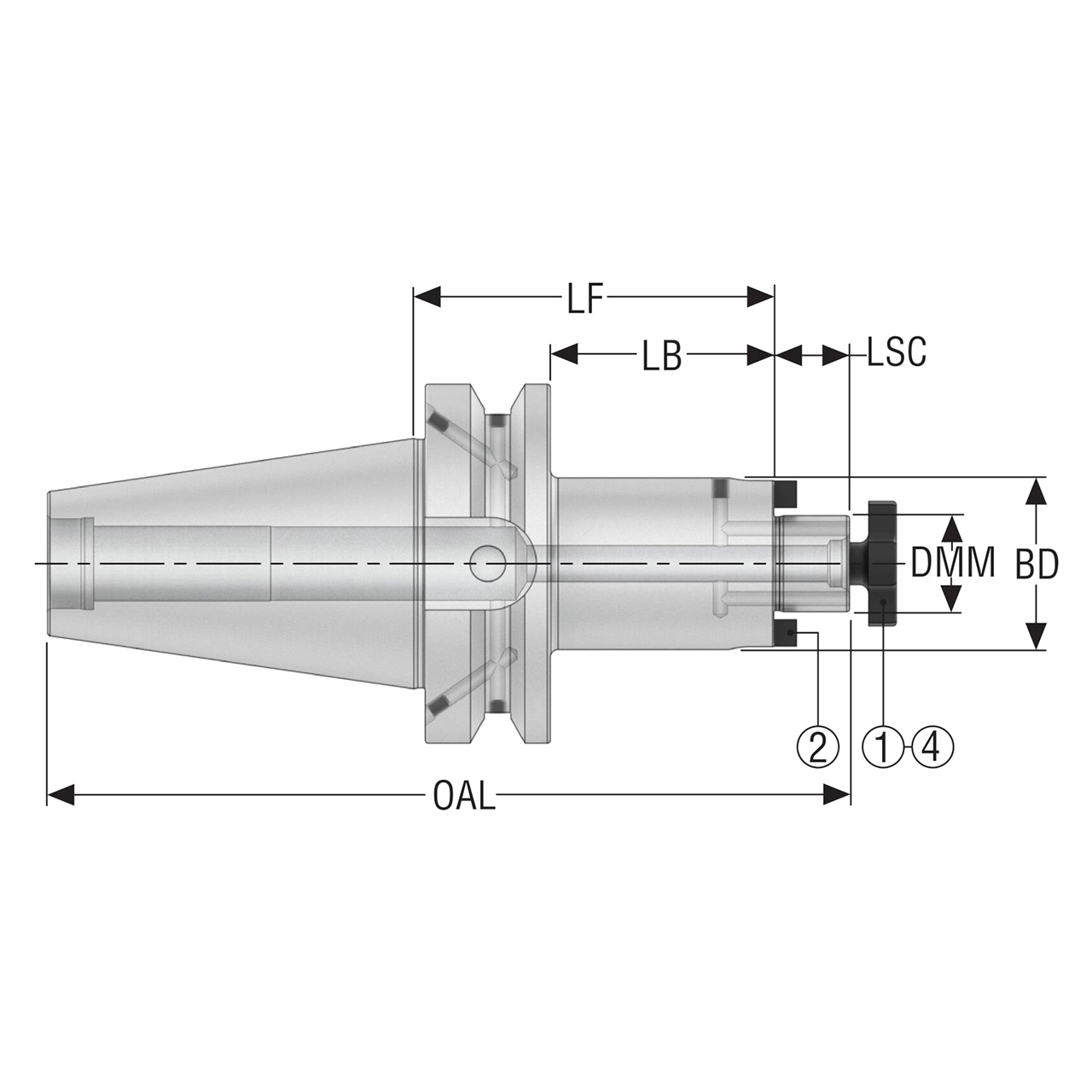

| Manufacturer Part Number | 03301655 |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.866" |
| Connection Diameter Workpiece Side (mm) | 22.00mm |
| Shank Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (mm) | 22.00mm |
| Body Length (Decimal Inch) | 2.874" |
| Body Length (mm) | 73.00mm |
| Functional Length (Decimal Inch) | 3.937" |
| Functional Length (mm) | 100.00mm |
| Clamping Length (Decimal Inch) | 0.748" |
| Clamping Length (mm) | 19.00mm |
| Overall Length (Decimal Inch) | 7.260" |
| Overall Length (mm) | 184.40mm |
| Data Chip Provision | 1 |

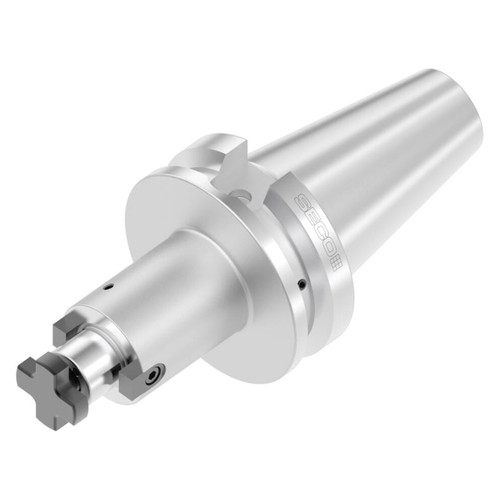

| Product Type | Shell Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
