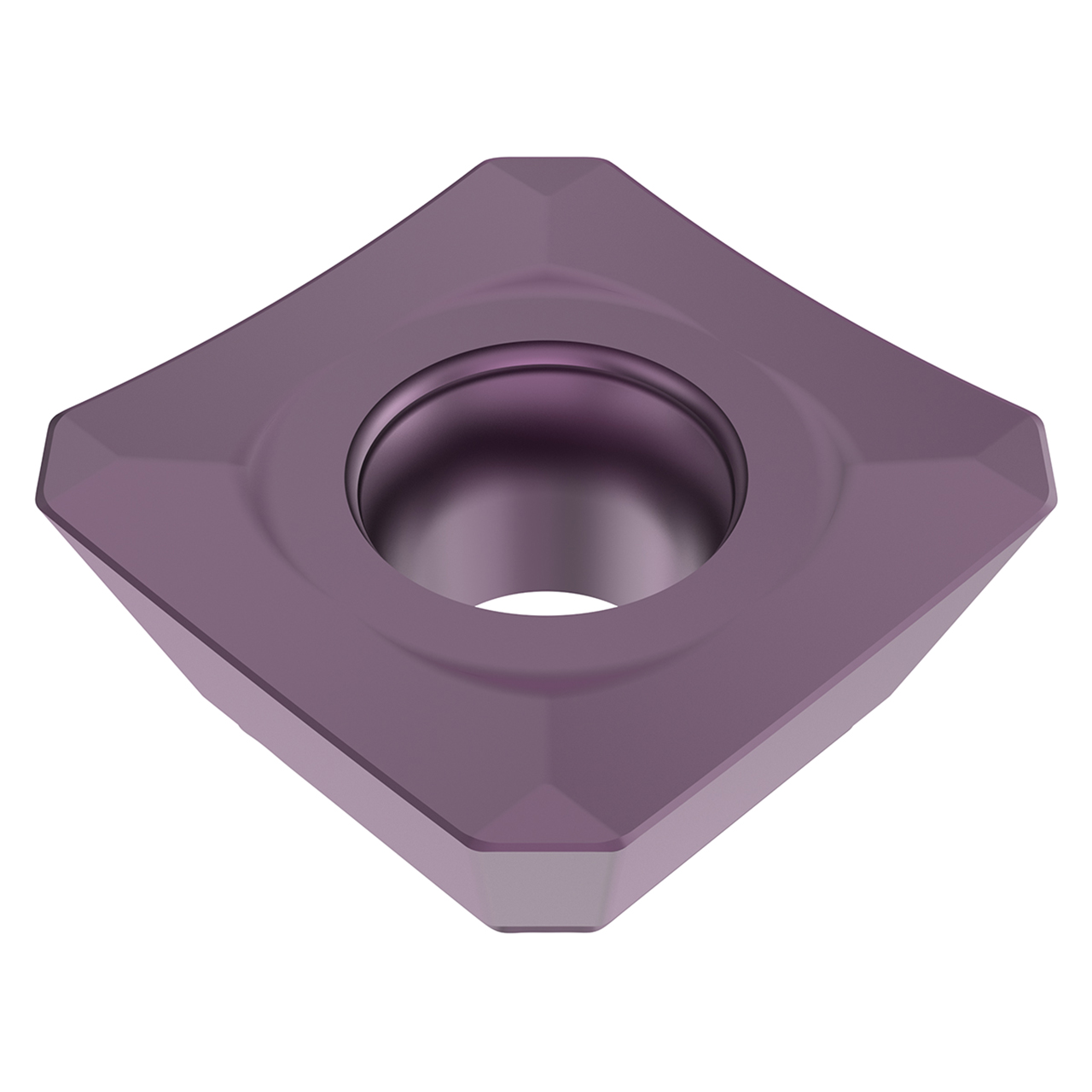

Seco Tools 10321782 | SEEX09T3AFN-M05 0.375" Circle Diameter x 0.156" Thickness x 0.012" Radius x 20 Degree Clearance Angle 4 Edge Count PVD Coated MP2051 Grade Carbide Milling Insert

$22.20 $17.09
(You save $5.11)
Brand:
Seco Tools
Thickness (Decimal Inch):
0.1563"
Finish/Coating:
PVD
Material:
Carbide
interval quantity:
1
SKU:
23462423
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10321782 | SEEX09T3AFN-M05 0.375" Circle Diameter x 0.156" Thickness x 0.012" Radius x 20 Degree Clearance Angle 4 Edge Count PVD Coated MP2051 Grade Carbide Milling Insert

Product Specifications
Manufacturer Part Number10321782
Wiper Edge Length (Decimal Inch)0.059"
Inscribed Circle Diameter (Decimal Inch)0.375"
Cutting Edge Length (Decimal Inch)0.375"
Cutting Edge Effective Length (Decimal Inch)0.280"
Corner Radius (Decimal Inch)0.012"
Insert Thickness (Decimal Inch)0.156"
Insert Size and ShapeSEEX09T3
Cutting Edge Count4
Cutting Geometry Type TechnicalM05
GradeMP2051
Grade typeCarbide PVD
Insert HandNeutral
Clearance Angle (Degree)20 Degree
CoatingPVD
MaterialCarbide
Product TypeMilling Insert
