Features

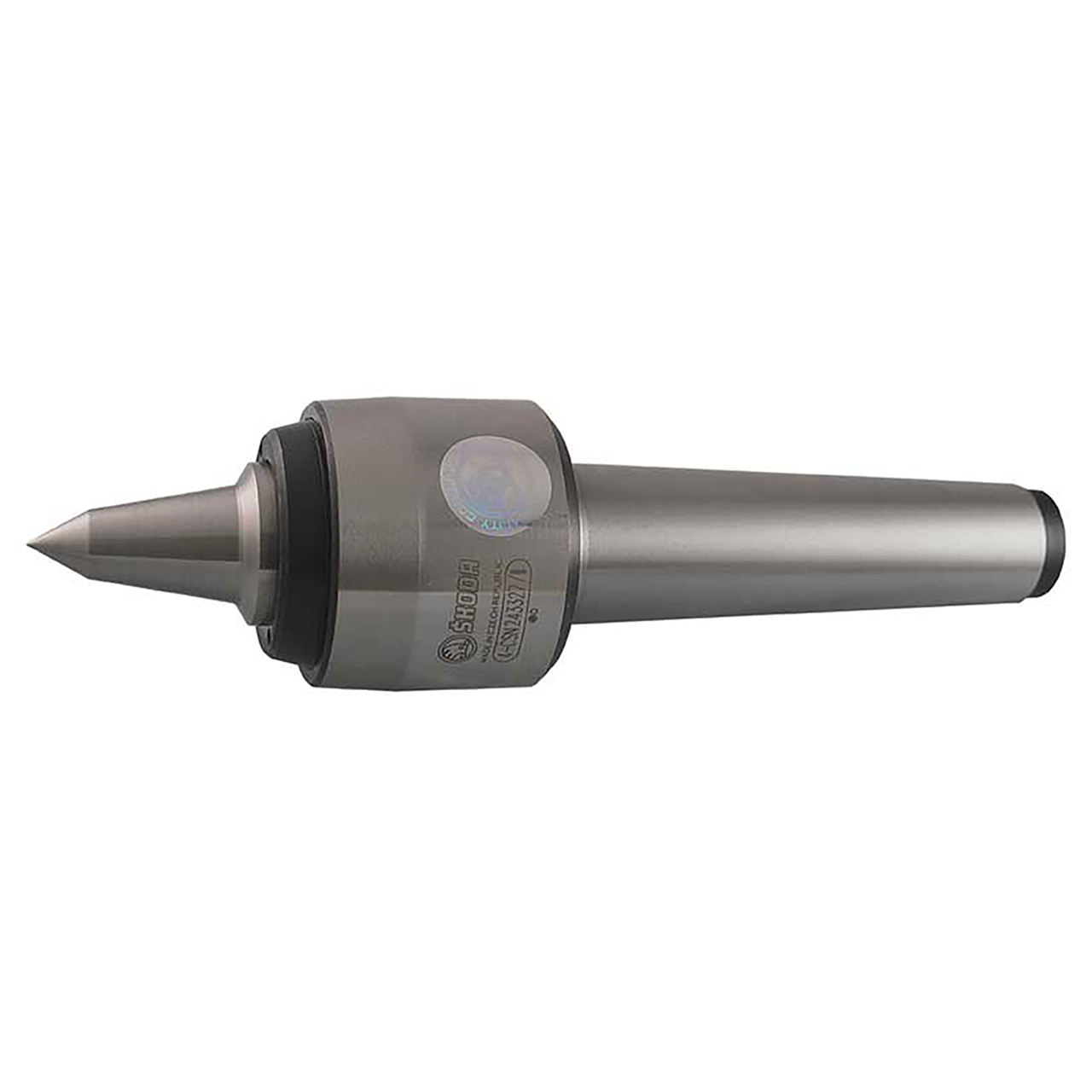

- The centers are intended for NC lathes. Their face parts are formed to allow easy access of the tool to the workpiece, which is an advantage with workpieces of complex shapes
- A special ring is used to set the radial clearance of the center. It also prevents cutting lubricant from leaking into the center bearing space, and so extends the operational life of the center
- Spindle-like point extends into shank where it is supported by a needle bearing, increasing rigidity, reducing point deflection and dampening vibration
Product Specifications
| Manufacturer Part Number | 310020 |
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (lbs.) | 4840 lbs. |
| Point Diameter (Decimal Inch) | 1.125" |
| Included Angle (Degree) | 60 Degree |
| Model Number | CSN 243327-II |
| Head Diameter (Decimal Inch) | 2.2" |
| Head Length (Decimal Inch) | 3.95" |
| Overall Length (Decimal Inch) | 8.15" |
| Product Type | Live Center |
