Features
- Designed to hold pipe and hollow work
- Pipe head can be used as an all-round center for light work
- Two matched angular contact bearings preloaded at the factory
- This achieves good thrust and radial capacities
- Bearings are protected by a combination steel shield and neoprene seal
- Accuracy: ±0.0001"
Product Specifications
| Manufacturer Part Number | 310150 |
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (lbs.) | 4400 lbs. |
| Point Diameter (Decimal Inch) | 5.314" |
| Tip Diameter (Decimal Inch) | 1.811" |
| Included Angle (Degree) | 60 Degree |
| Model Number | CSN 243319 |
| Head Length (Decimal Inch) | 4.331" |
| Overall Length (Decimal Inch) | 9.449" |

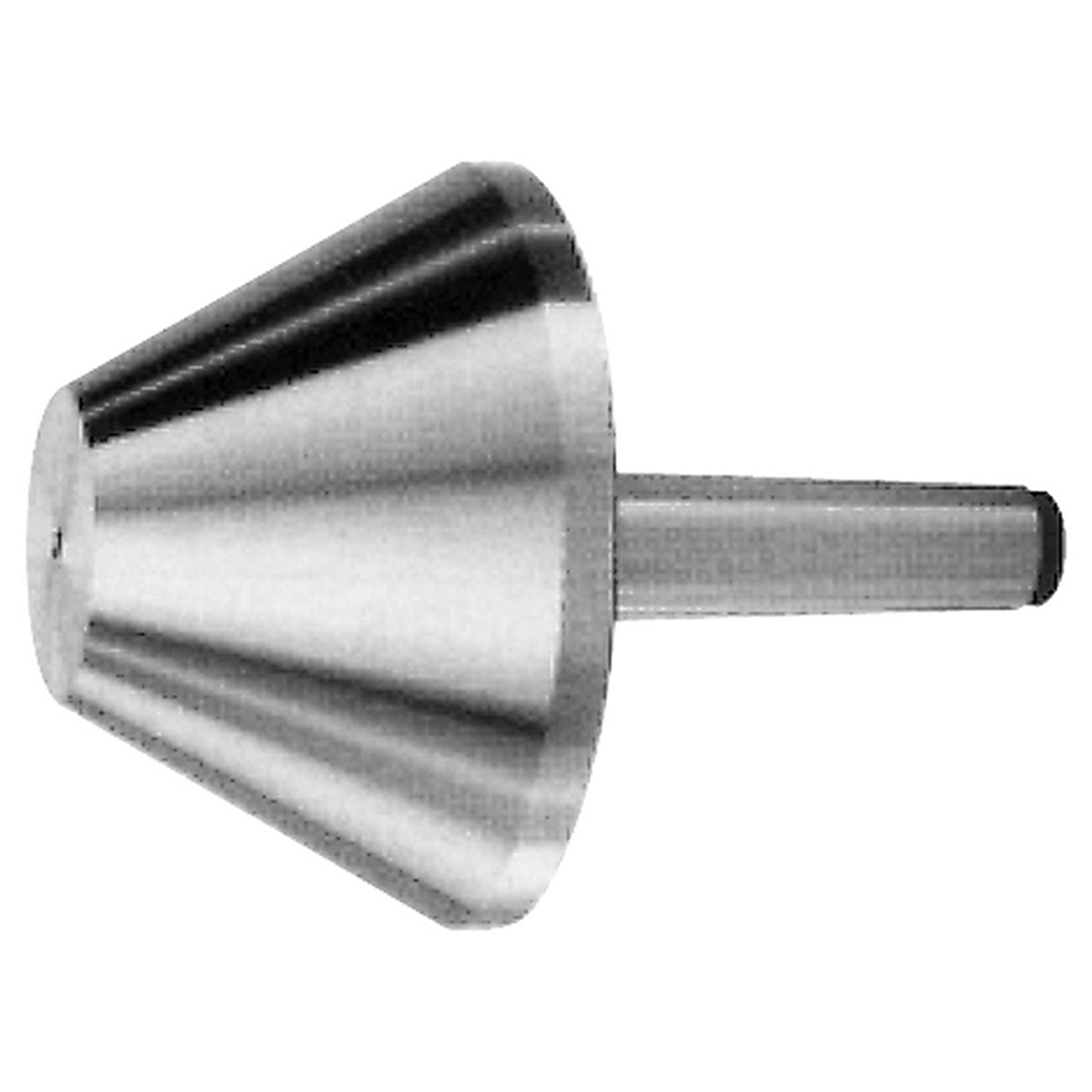

| Product Type | Live Center |
