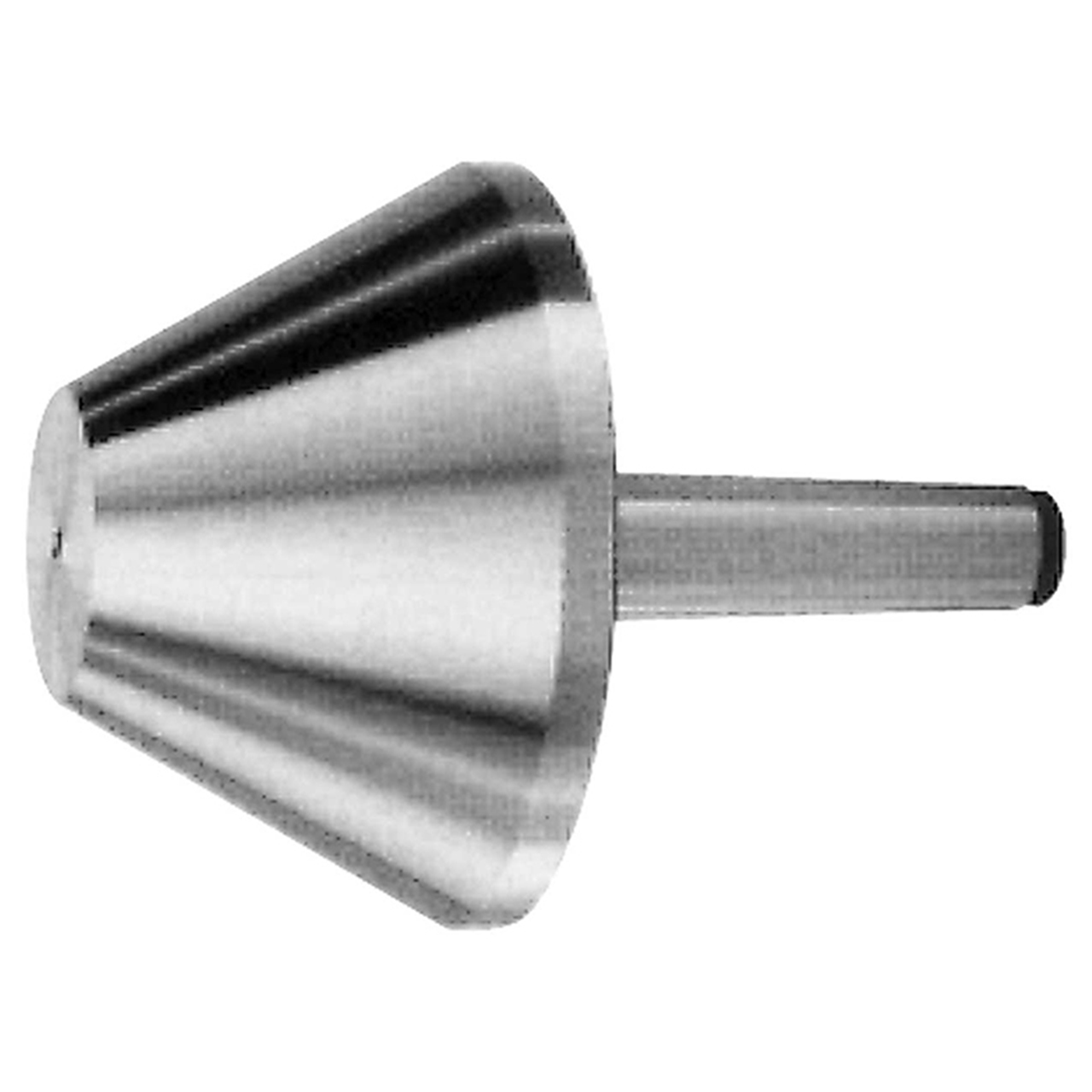

Features
- Designed to hold pipe and hollow work
- Pipe head can be used as an all-round center for light work
- Two matched angular contact bearings preloaded at the factory
- This achieves good thrust and radial capacities
- Bearings are protected by a combination steel shield and neoprene seal
- Accuracy: ±0.0001"
Product Specifications
| Manufacturer Part Number | 310145 |
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (lbs.) | 2860 lbs. |
| Point Diameter (Decimal Inch) | 4.527" |
| Tip Diameter (Decimal Inch) | 1.732" |
| Included Angle (Degree) | 60 Degree |
| Model Number | CSN 243319 |
| Head Length (Decimal Inch) | 3.622" |
| Overall Length (Decimal Inch) | 7.637" |
| Product Type | Live Center |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Skoda
Diameter (Inch):
4-17/32"
Diameter (Decimal Inch):
4.5270"
Diameter (mm):
114.99mm
