Features
- The rotating spindle is extended right through the tapered shank
- Two specially designed adjustable needle-roller bearings carry all radial loads
- A heavy duty ball thrust bearing takes all axial thrust
- Complete protection of bearings form the ingress of coolant, dirt or swarf is provided by the built-in oil-seal, which also prevents loss of lubricant
Product Specifications
| Manufacturer Part Number | 320125 |
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (lbs.) | 3000 lbs. |
| Point Diameter (Inch) | 1-3/4" |
| Included Angle (Degree) | 60 Degree |
| Overall Length (Inch) | 9-1/2" |

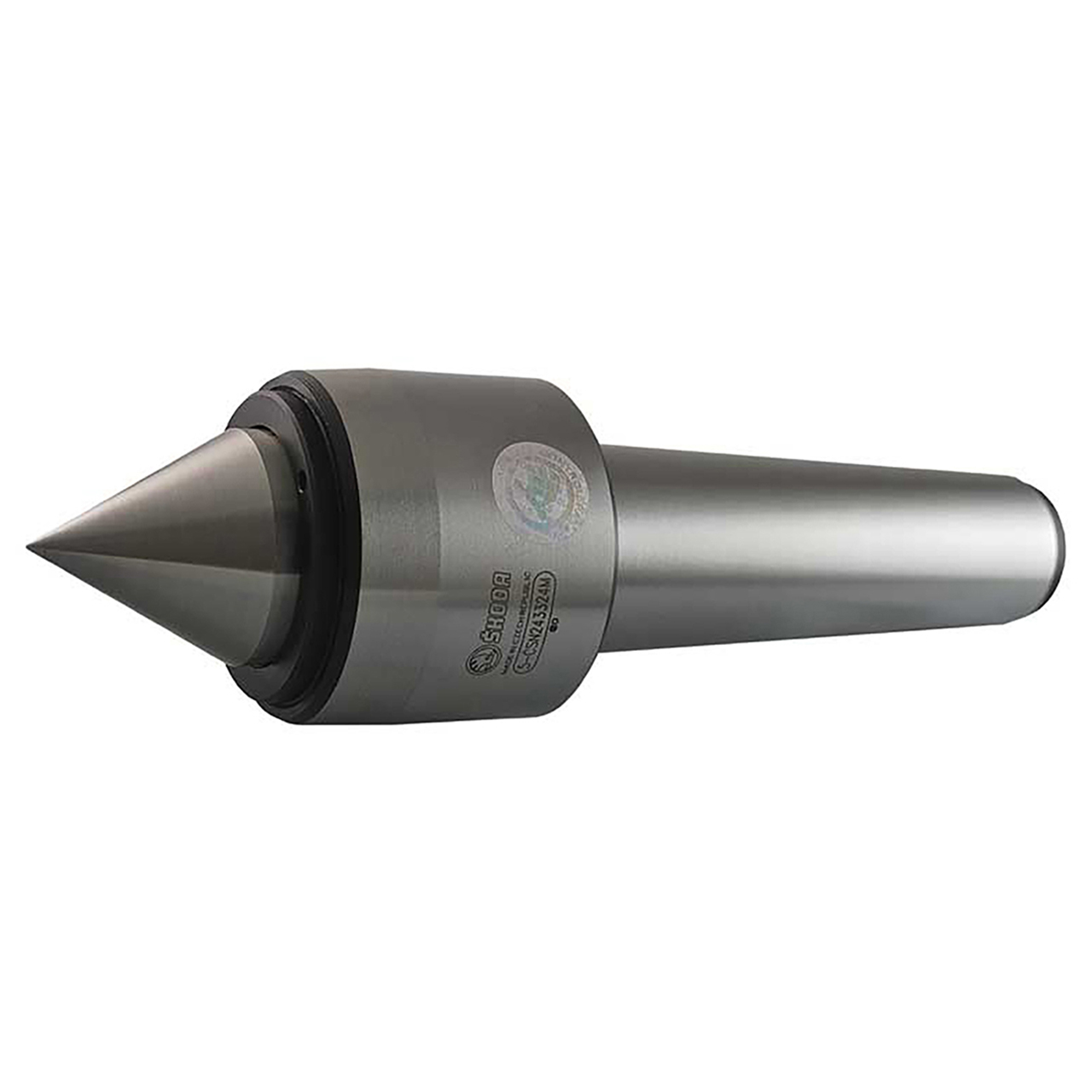

| Product Type | Live Center |
