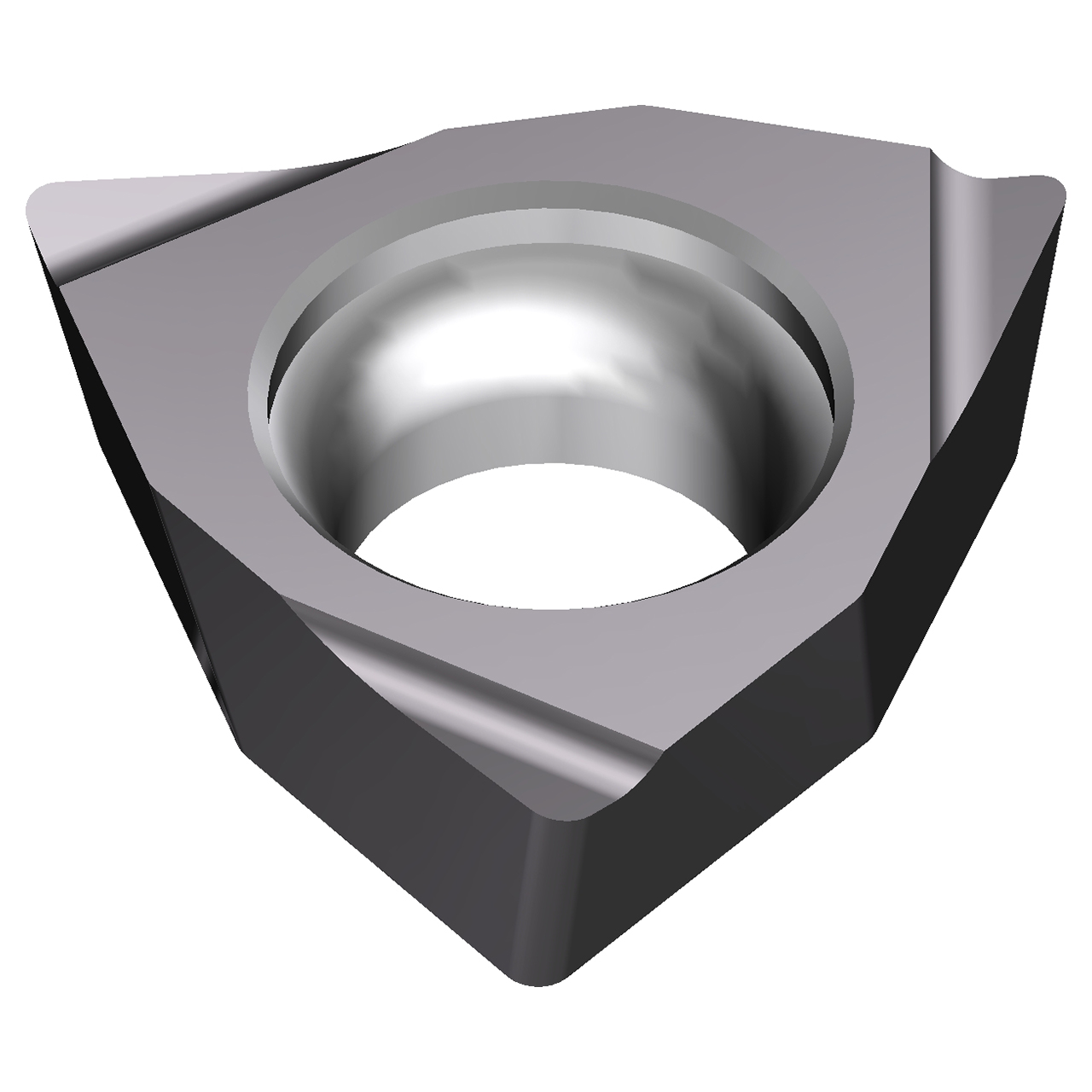

Sumitomo 10R4AAM | WBGT521LFY-AC1030U 0.1563" Circle Diameter x 2.20mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

$14.10 $12.69
(You save $1.41)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
WBGT
Insert Size:
521
Material:
Carbide
Length (Inch):
1/8"
Length (Decimal Inch):
0.1260"
Length (mm):
3.20mm
Inscribed Circle (Inch):
5/32"
Inscribed Circle (Decimal Inch):
0.1563"
Inscribed Circle (mm):
3.97mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0626"
Thickness (mm):
1.59mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
AC1030U
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23166645
Weight:
0.48 LBS
Shipping:
Free Shipping
Sumitomo 10R4AAM | WBGT521LFY-AC1030U 0.1563" Circle Diameter x 2.20mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number10R4AAM
Product Code-ANSIWBGT521LFY-AC1030U
Product Code-ISOWBGT060104L-FY
Manufacturer Grade IdentificationAC1030U
SeriesAC1030U
Cutting Edge Length (Decimal Inch)0.1260"
Cutting Edge Length (mm)3.20mm
Nose Radius (Decimal Inch)0.0157"
Nose Radius (mm)0.40mm
Inscribed Circle Diameter (Decimal Inch)0.1563"
Inscribed Circle Diameter (mm)3.97mm
Hole Diameter (mm)2.20mm
Insert Thickness (Decimal Inch)0.0626"
Insert Thickness (mm)1.59mm
Relief Angle5 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassG
Chip BreakerLFY
Corner Angle80
Insert StyleWBGT
Secondary Workpiece MaterialSteel, Stainless Steel, Small Machining
Primary Workpiece MaterialSteel, Stainless Steel, Small Machining
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationP10, M10
Insert Holding MethodScrew-On
