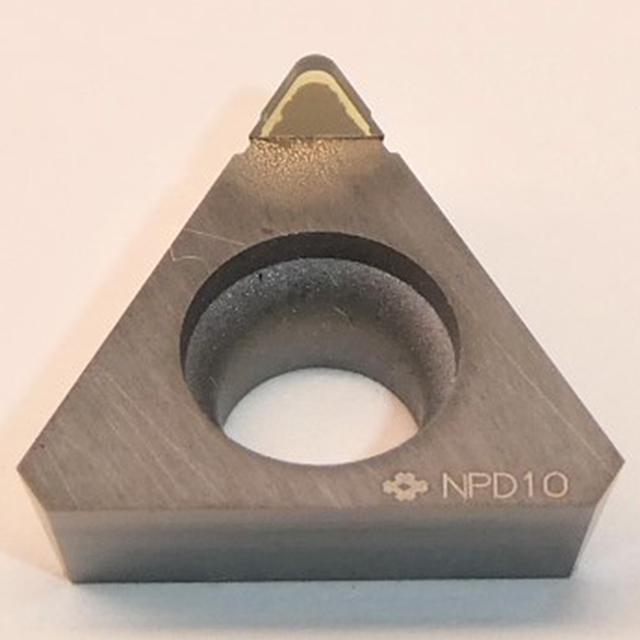

| EDP Number | 332T021 |
| Product Code-ANSI | TPMA220.5RH-NPD10 |
| Product Code-ISO | TPMW110302RH |
| Manufacturer Grade Identification | NPD10 |
| Series | NPD10 |
| Effective Length (Inch) | 0.0630" |
| Effective Length (mm) | 1.60mm |
| Nose Radius (Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Inscribed Circle Diameter (Inch) | 0.2500" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Hole Diameter (mm) | 3.40mm |
| Insert Thickness (Inch) | 0.1252" |
| Insert Thickness (mm) | 3.18mm |
| Insert Size | 220.5 |
| Corner Angle | 60 Degree |
| Relief Angle | 11 Degree |
| Rake Angle | Positive |
| Insert Material | PCD |
| Insert Style | TPMA |
| Tolerance Class | M |
| Coating | Uncoated Binderless PCD |
| Insert Holding Method | Pin & Clamp |
| Standard Designation of the Grade, Main Application | Hard Brittle Material |
