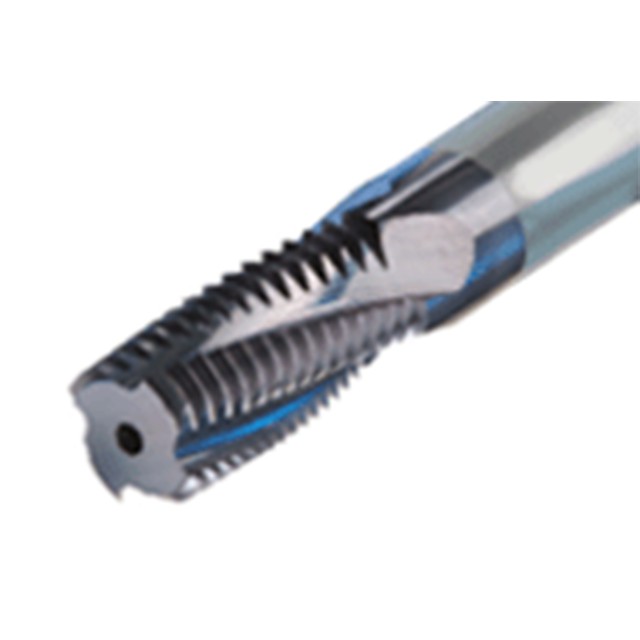

Solid carbide internal or external threading endmills with coolant holes for BSP thread profile.
Product Specifications
| Manufacturer Part Number | 5605074 |
| Connection Diameter Machine Side (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.307" |
| Functional Length (Inch) | 2.520" |
| Grade | AH725 |
| Threads per Inch Maximum (Inch) | 28 Threads |
| Body Material | Carbide |
| Tool Type | Solid Carbide Thread Mills |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | External Thread Milling, Internal Thread Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Cutter Diameter (Inch):
5/16"
Cutter Diameter (Decimal Inch):
0.3070"
Cutter Diameter (mm):
7.80mm
Finish/Coating:
TiAlN
Material:
Carbide
Number of Flutes:
3
interval quantity:
1
