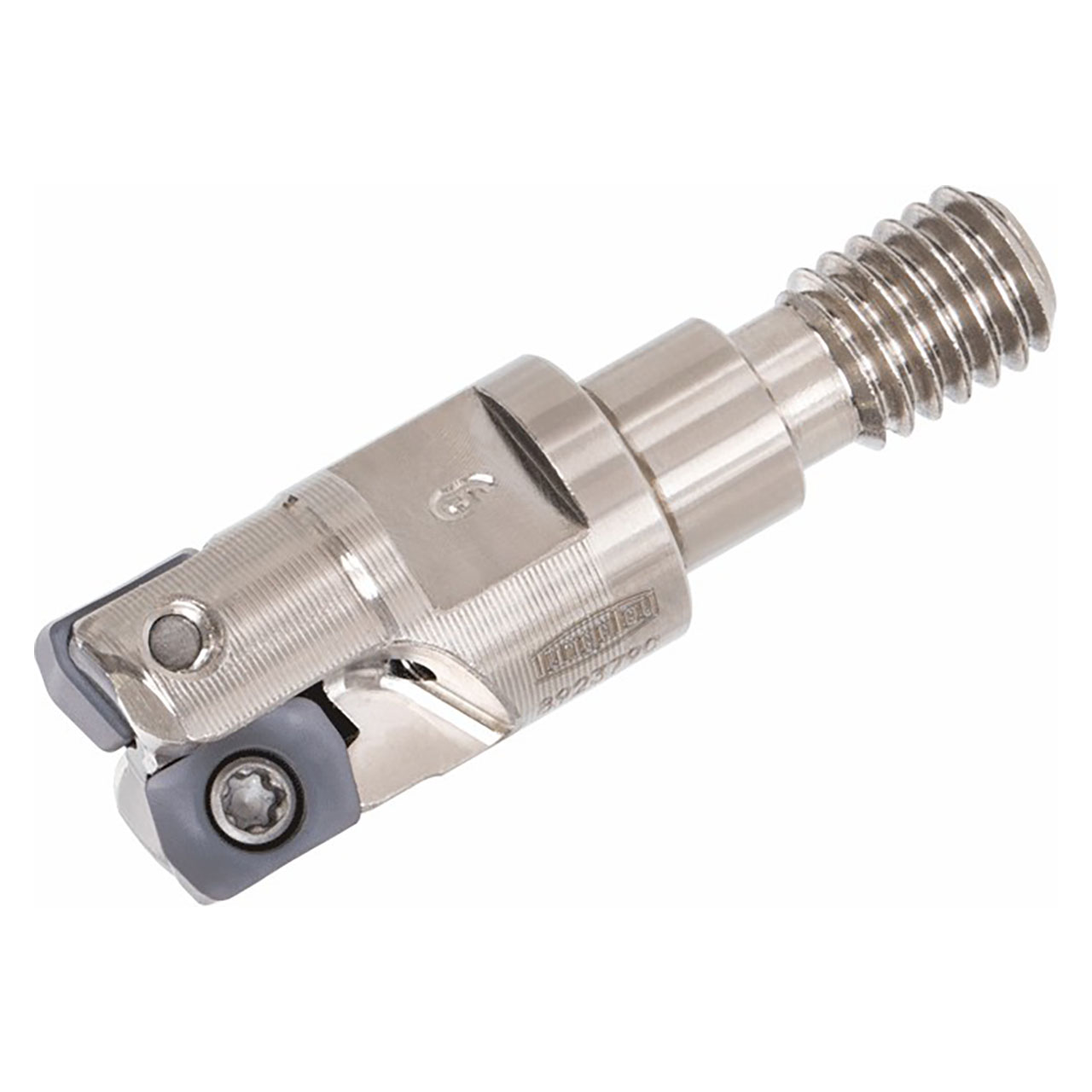

High feed milling cutters with LSMT inserts. Modular heads with TungFlex threaded adaptation.
Product Specifications
| # MFG | 6772876 |
| Connection Diameter Machine Side (mm) | 10mm |
| Connection Retention Knob Thread Size | M6 |
| Cutting Diameter (mm) | 8.31mm |
| Cutting Item Count | 3 |
| Maximum Cutting Diameter (mm) | 12mm |
| Maximum Depth of Cut (mm) | 0.5mm |
| Functional Length (mm) | 17mm |
| Overall Length (mm) | 31.5mm |
| Shank Height (mm) | 7mm |
| Tool Cutting Edge Angle (Degree) | 12 Degree |
| Body Material | Steel |
| Application | Face Milling, High Feed Milling, Profile Milling |
| Tool Type | Fast Feed Endmill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (mm):
12.00mm
Body Material:
Steel
Maximum Depth of Cut (mm):
0.50mm
Overall Length (mm):
31.50mm
Shank Height (mm):
7.00mm
interval quantity:
1
