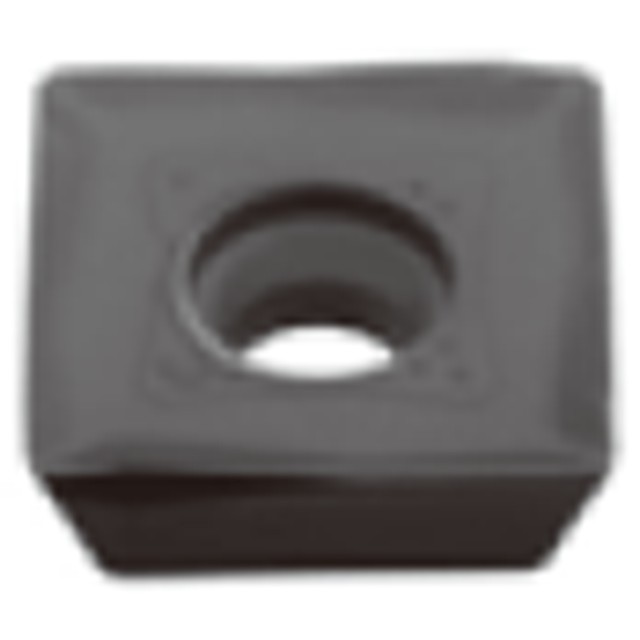

Tungaloy 6774960 | SWMT1304PDPR-MJ T3225 0.535" Diameter x 0.197" Thickness x 0.032" Radius Carbide Milling Insert

$17.50 $14.53
(You save $2.97)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T3225
Width (Inch):
17/32"
Width (Decimal Inch):
0.5350"
Width (mm):
13.59mm
Inscribed Circle (Inch):
17/32"
Inscribed Circle (Decimal Inch):
0.5350"
Inscribed Circle (mm):
13.59mm
Thickness (Inch):
13/64"
Thickness (Decimal Inch):
0.1970"
Thickness (mm):
5.00mm
SKU:
23130069
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

For general purpose. Sharp edge provides low cutting force.


Product Specifications
Manufacturer Part Number6774960
Cutting Edge Effective Length (Inch)0.535"
Corner Radius (Inch)0.0315"
Depth of Cut Maximum (Inch)0.394"
Inscribed Circle Diameter (Inch)0.535"
Insert Thickness (Inch)0.197"
Insert Width (Inch)0.535"
Maximum Feed per Tooth0.0079"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges4
Wiper Edge Length0.055"
ApplicationShoulder Milling
Body MaterialCarbide
GradeT3225
Applicable MaterialSteel, Stainless Steel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T3225
Width (Inch):
17/32"
Width (Decimal Inch):
0.5350"
Width (mm):
13.59mm
Inscribed Circle (Inch):
17/32"
Inscribed Circle (Decimal Inch):
0.5350"
Inscribed Circle (mm):
13.59mm
Thickness (Inch):
13/64"
Thickness (Decimal Inch):
0.1970"
Thickness (mm):
5.00mm
