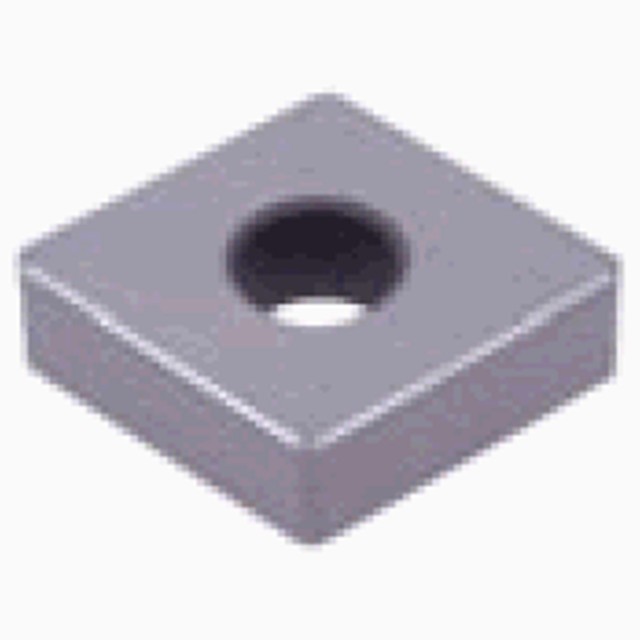

Tungaloy 6822099 | CNMA 433 W FX105 1/2" Circle Diameter x 0.187" Thickness x 0.047" Radius Ceramic Indexable Turning Insert

$17.80 $12.46
(You save $5.34)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.19mm
SKU:
23018972
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, 80 degree rhombic insert with wiper.


Product Specifications
Manufacturer Part Number6822099
Corner Radius (Inch)0.047"
Cutting Edge Length (Inch)0.508"
Maximum Depth of Cut (Inch)0.1181"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0236"/rev
Minimum Depth of Cut (Inch)0.0019"
Minimum Turning Feed (Inch)0.002"/rev
Cutting Edge MaterialCeramic
GradeFX105
Tool TypeTurn Negative Inserts
Applicable MaterialCast Iron
Chip Breaker TypeFT-FX105
Body MaterialCarbide
