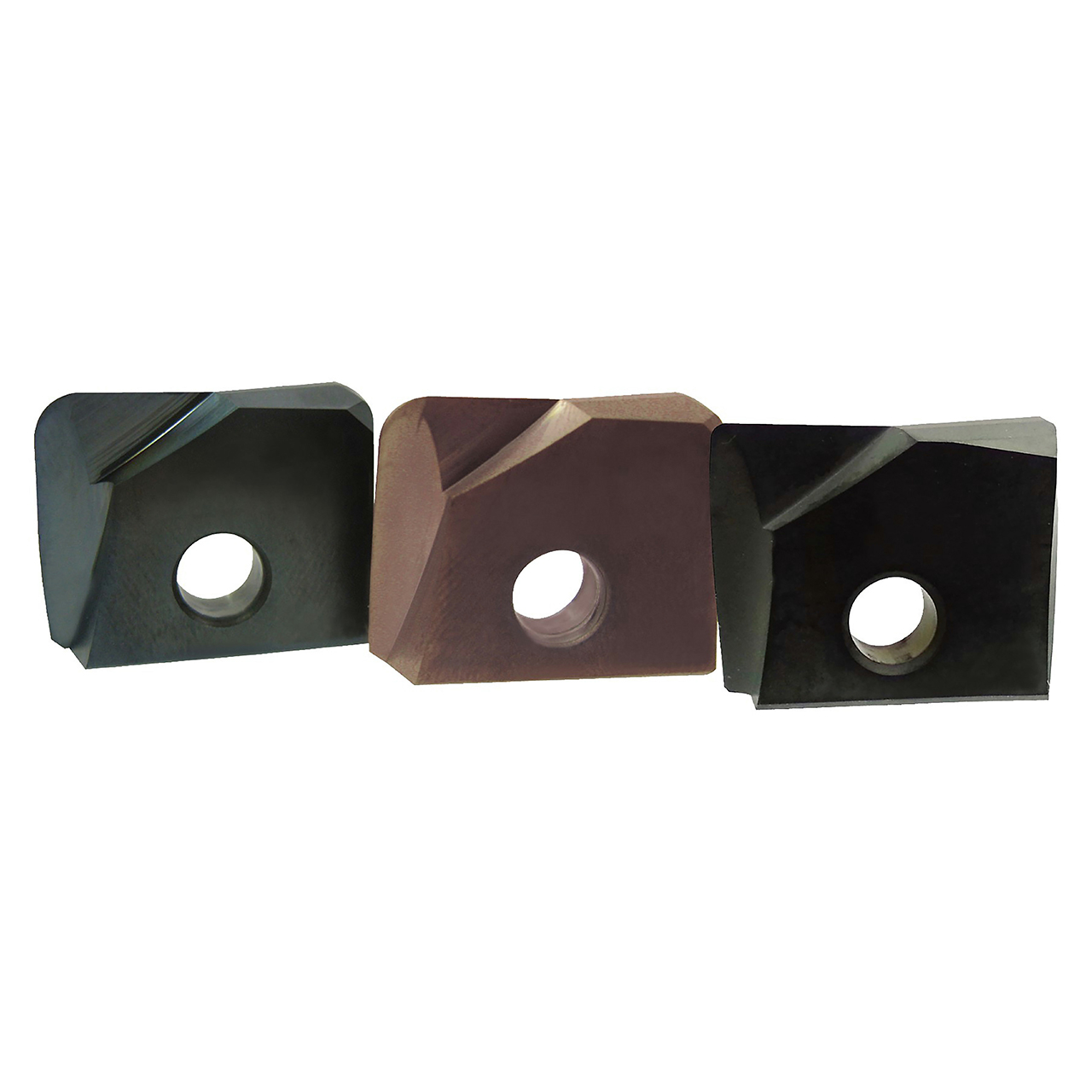

YG1 XRBA21010 | 21.00mm Diameter x 5.20mm Thickness x 16.00mm Height x 4.00mm OD Length x 1.00mm Radius x 4 Degree Relief Angle H-Coated Carbide XRBA I-Xmill Corner Radius Insert

$93.25 $63.41
(You save $29.84)
Brand:
YG1
Insert Style:
XRBA
Material:
Carbide
Finish/Coating:
H-Coating
Thickness (Inch):
0.2047"
interval quantity:
1
SKU:
23016953
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberXRBA21010
Diameter (Decimal Inch)0.8268"
Diameter (Inch)43/52"
Diameter (mm)21.00mm
Thickness (Decimal Inch)0.2047"
Thickness (Inch)17/83"
Thickness (mm)5.20mm
Insert Height (Decimal Inch)0.6875"
Insert Height (Inch)11/16"
Insert Height (mm)17.46mm
Corner Radius (Decimal Inch)0.0394"
Corner Radius (Inch)3/76"
Corner Radius (mm)1.00mm
Outer Diameter Straight Length (Decimal Inch)0.1575"
Outer Diameter Straight Length (Inch)3/19"
Outer Diameter Straight Length (mm)4.00mm
Relief Angle4 Degree
CoatingH-Coating
MaterialCarbide
ApplicationP,K,N
TypeCorner Radius Milling Insert
