Product Specifications
| Manufacturer Part Number | BK836 |
| Thread Size (Inch) | 1-1/8" |
| Thread Size (Decimal Inch) | 1.125" |
| Thread Size (mm) | 28.58mm |
| Threads per Inch (TPI) | 8 |
| Thread Series | UN |
| Pitch Limit | H6 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Overall Length (Decimal Inch) | 7.087" |
| Overall Length (mm) | 180.01mm |
| Thread Length (Decimal Inch) | 1.260" |
| Thread Length (mm) | 32.00mm |
| Square Length (Decimal Inch) | 0.880" |
| Square Length (mm) | 22.35mm |
| Shank Diameter (Decimal Inch) | 0.896" |
| Shank Diameter (mm) | 22.76mm |
| Square Size (Decimal Inch) | 0.672" |
| Square Size (mm) | 17.07mm |
| Neck Diameter (Decimal Inch) | 0.880" |
| Neck Diameter (mm) | 22.35mm |
| Neck Length (Decimal Inch) | 3.740" |
| Neck Length (mm) | 95.00mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 1.011" |
| Drill Size (mm) | 25.69mm |
| Connection Size (Decimal Inch) | 0.896" x 0.672" |
| Connection Size (mm) | 22.76 x 17.07mm |
| Length / Diameter | 2.5 X D |
| Usable Length (Decimal Inch) | 3.740" |
| Usable Length (mm) | 95.00mm |
| Ring Color | Blue Ring |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 4 |
| Coating | Hardslick |
| Material | HSS-PM |
| Blank Standard | DIN/ANSI |

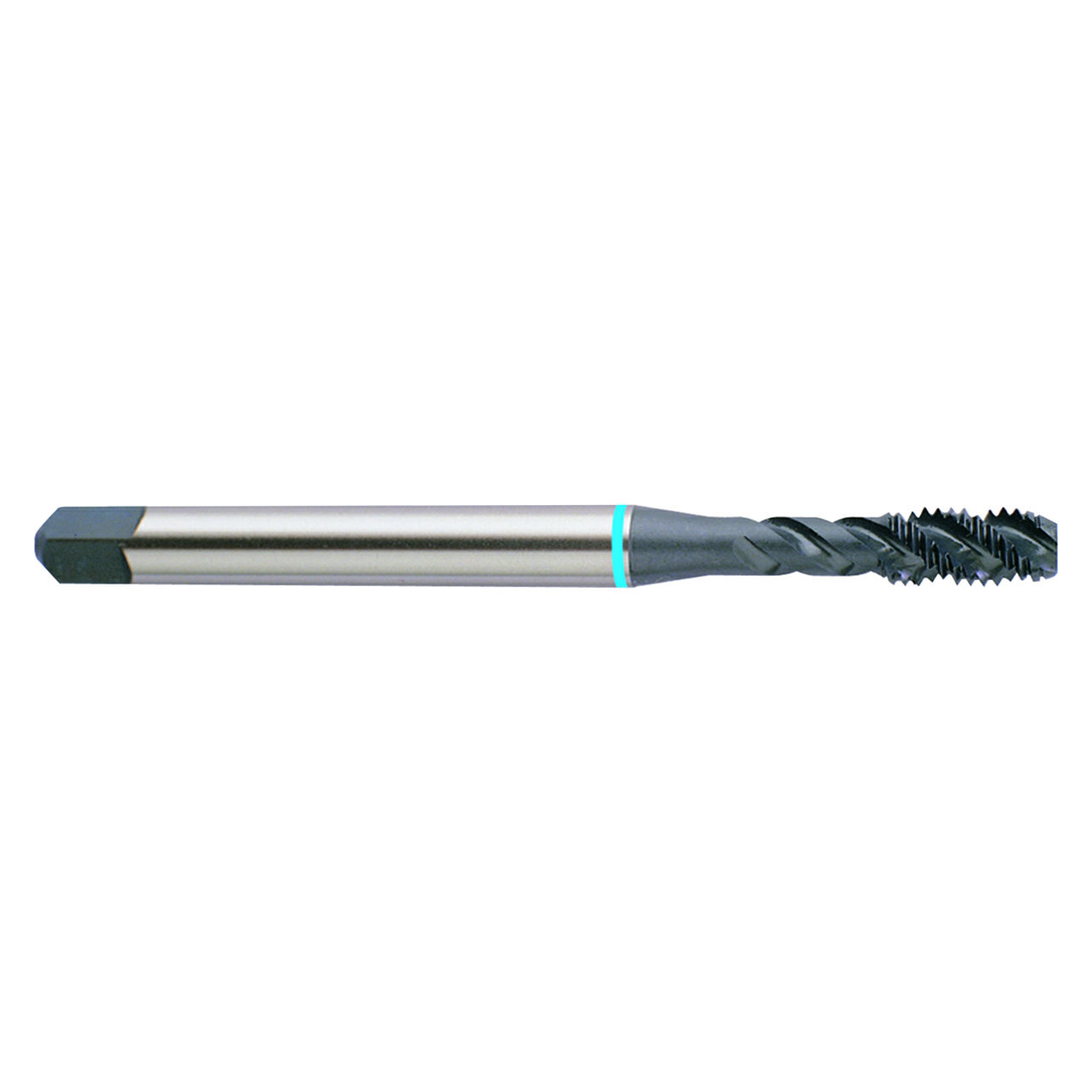

| Product Type | Spiral Flute Tap |
