Product Specifications
| Manufacturer Part Number | BK916 |
| Thread Size (Inch) | 1-3/8" |
| Thread Size (Decimal Inch) | 1.375" |
| Thread Size (mm) | 34.93mm |
| Threads per Inch (TPI) | 8 |
| Thread Series | UN |
| Pitch Limit | H6 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Overall Length (Decimal Inch) | 7.874" |
| Overall Length (mm) | 200.00mm |
| Thread Length (Decimal Inch) | 1.260" |
| Thread Length (mm) | 32.00mm |
| Square Length (Decimal Inch) | 1.060" |
| Square Length (mm) | 26.92mm |
| Shank Diameter (Decimal Inch) | 1.108" |
| Shank Diameter (mm) | 28.14mm |
| Square Size (Decimal Inch) | 0.831" |
| Square Size (mm) | 21.11mm |
| Neck Diameter (Decimal Inch) | 1.089" |
| Neck Diameter (mm) | 27.66mm |
| Neck Length (Decimal Inch) | 3.937" |
| Neck Length (mm) | 100.00mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 1.261" |
| Drill Size (mm) | 32.04mm |
| Connection Size (Decimal Inch) | 1.108" x 0.831" |
| Connection Size (mm) | 28.14 x 21.11mm |
| Length / Diameter | 2.5 X D |
| Usable Length (Decimal Inch) | 3.937" |
| Usable Length (mm) | 100.00mm |
| Ring Color | Blue Ring |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 4 |
| Coating | Hardslick |
| Material | HSS-PM |
| Blank Standard | DIN/ANSI |

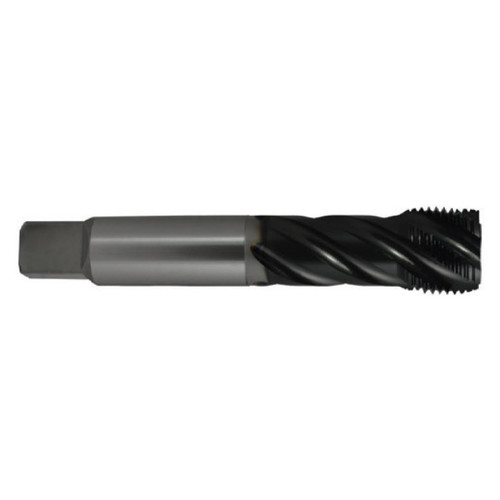

| Product Type | Spiral Flute Tap |
