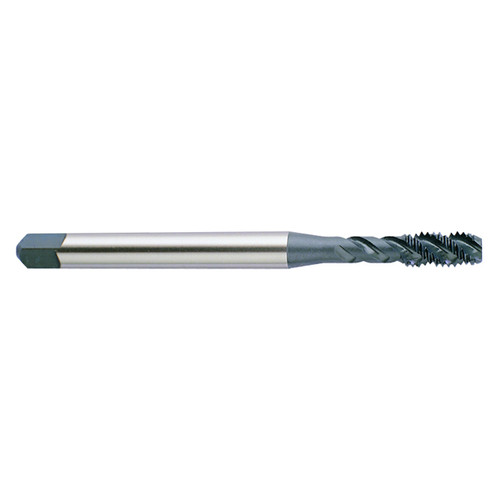

YG1 BX515 | M12x1.5 Thread x 0.4724" Diameter x 0.3670" Shank x 3.3800" OAL 2 Flute Hardslick Coated HSSE-V3 Spiral Flute Thread Tap

$68.96 $49.65
(You save $19.31)
Brand:
YG1
Number of Flutes:
2
Material:
HSSE-V3
Finish/Coating:
Hardslick
Through Coolant:
No
Threads per Inch (TPI):
1.5 TPI
Overall Length (Decimal Inch):
3.3800"
Overall Length (mm):
85.85mm
interval quantity:
1
SKU:
15007259
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
# Manufacturer NumberBX515
Diameter (Decimal Inch)0.4724"
Diameter (mm)12.00mm
Thread SizeM12
Pitch1.5 TPI
Shank Diameter (Decimal Inch)0.3670"
Shank Diameter (mm)9.32mm
Overall Length (Decimal Inch)3.3800"
Overall Length (mm)85.85mm
Thread Length (Decimal Inch)0.5910"
Thread Length (mm)15.01mm
Square Length (Decimal Inch)0.4400"
Square Length (mm)11.18mm
Square Size (Decimal Inch)0.2750"
Square Size (mm)6.99mm
Neck Diameter (Decimal Inch)0.3540"
Neck Diameter (mm)0.00mm
Useable Length (Decimal Inch)2.0670"
Useable Length (mm)52.50mm
Drill Size (Decimal Inch)0.4187"
Drill Size (mm)10.64mm
Number of Flutes2
Pitch LimitD5
Helix Angle (Degree)50 Degree
Coolant ThroughNo
Shank TypeSquare
Finish / CoatingHardslick
MaterialHSSE-V3
Chamfer Length2P-3P
Chamfer TypeModified Bottoming
Product TypeSpiral Flute Thread Tap
