Product Specifications
| Manufacturer Part Number | D1119245 |
| Diameter (Inch) | 5/61" |
| Diameter (Decimal Inch) | 0.0820" |
| Diameter (mm) | 2.08mm |
| Shank Diameter (Inch) | 5/61" |
| Shank Diameter (Decimal Inch) | 0.0820" |
| Shank Diameter (mm) | 2.08mm |
| Flute Length (Inch) | 3/4" |
| Flute Length (Decimal Inch) | 0.7500" |
| Flute Length (mm) | 19.05mm |
| Overall Length (Inch) | 1-3/4" |
| Overall Length (Decimal Inch) | 1.7500" |
| Overall Length (mm) | 44.45mm |
| Point Length (Decimal Inch) | 0.0170" |
| Point Length (mm) | 0.43mm |
| Wire Size | #45 |
| Number of Flute | 2 |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Cutting Direction | Right Hand |
| Material | HSS |
| Coating | Bright |

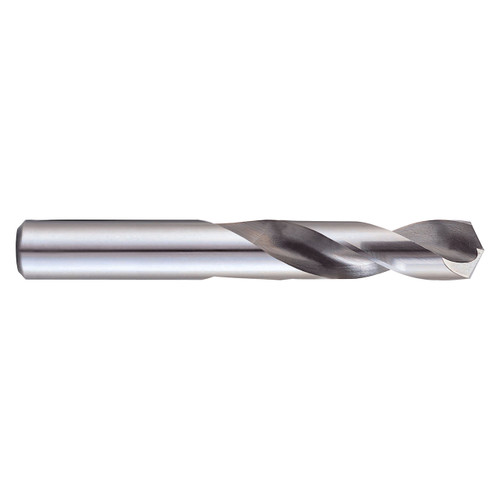

| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
3/4"
Flute Length (Decimal Inch):
0.7500"
Flute Length (mm):
19.05mm
Overall Length (Inch):
1-3/4"
Overall Length (Decimal Inch):
1.7500"
Overall Length (mm):
44.45mm
Material:
HSS
Finish/Coating:
Bright
