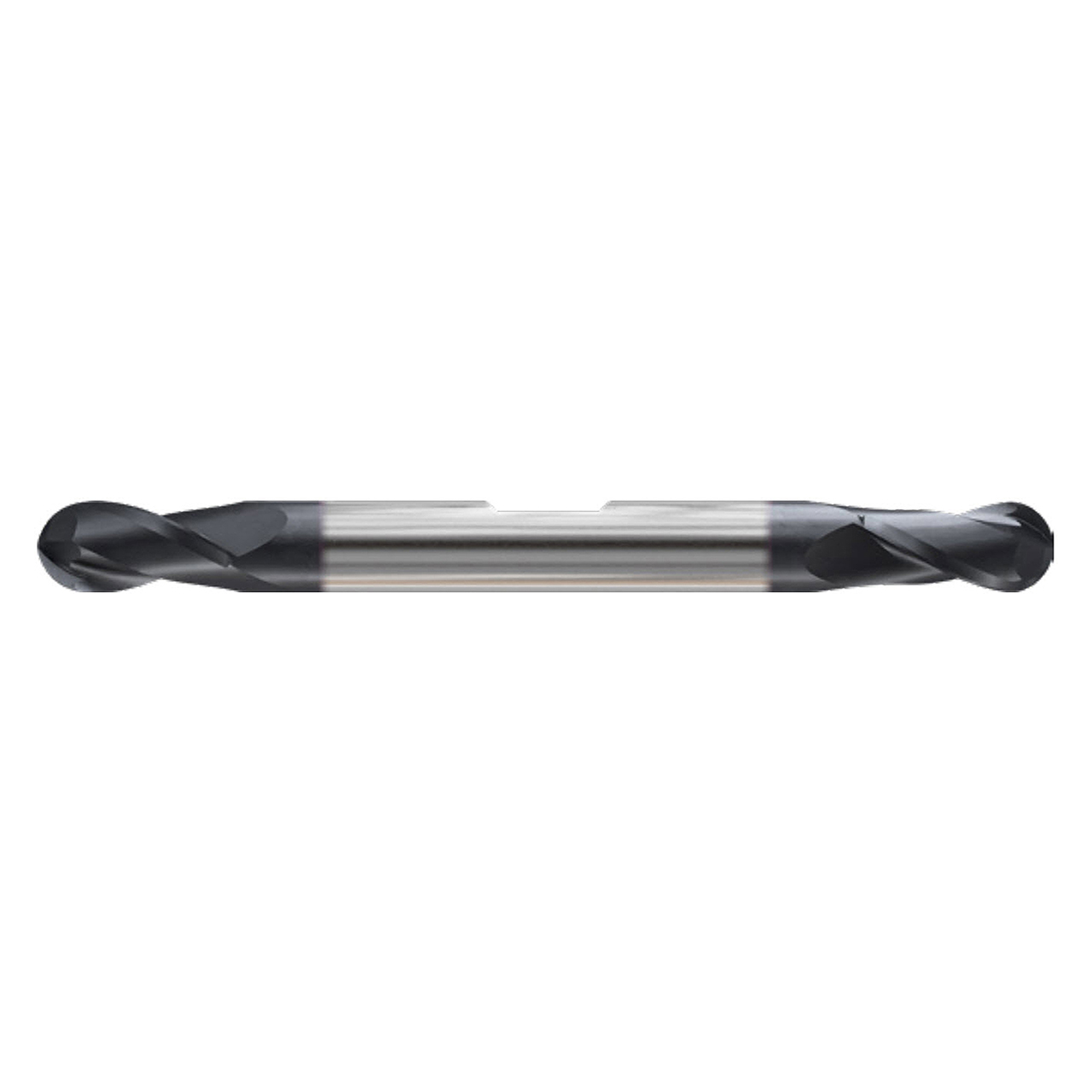

| Manufacturer Part Number | G9I04018N |
| Mill Diameter (Inch) | 9/32" |
| Mill Diameter (Decimal Inch) | 0.2813" |
| Mill Diameter (mm) | 7.14mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 11/16" |
| Length of Cut (Decimal Inch) | 0.6875" |
| Length of Cut (mm) | 17.46mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Ball Nose (Decimal Inch) | 0.1406" |
| Ball Nose (Inch) | 9/64" |
| Ball Nose (mm) | 3.57mm |
| Helix | 30 Degree |
| Series | G9I04 |
| Coated | X-Coating |
| Material | Carbide |
| Type | Ball Nose Double End |
| Corner Type | Ball Nose |
