Product Specifications

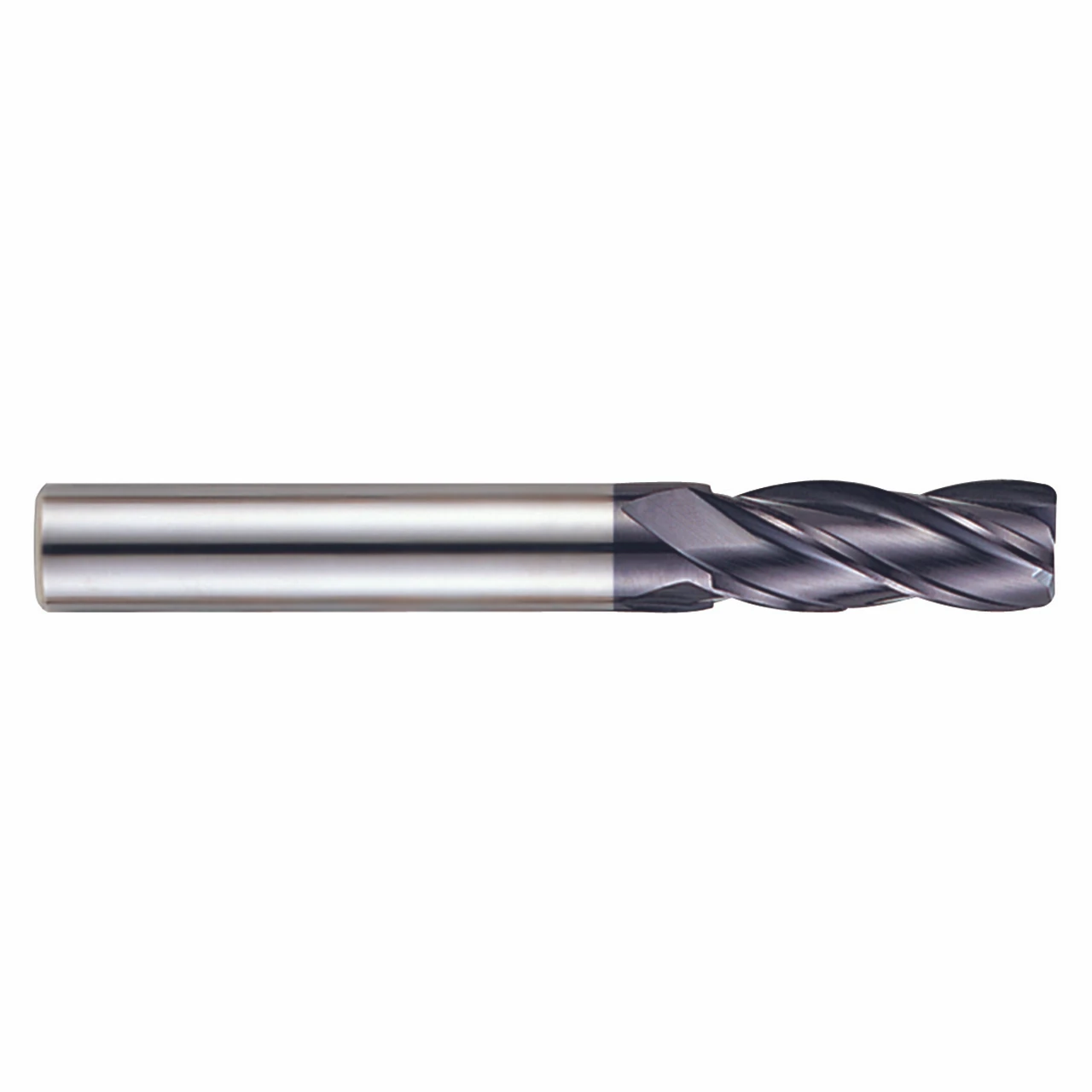

| Manufacturer Part Number | GM819916 |
| Mill Diameter (Inch) | 17/27" |
| Mill Diameter (Decimal Inch) | 0.6299" |
| Mill Diameter (mm) | 16.00mm |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Inch) | 1-31/32" |
| Length of Cut (Decimal Inch) | 1.9685" |
| Length of Cut (mm) | 50.00mm |
| Overall Length (Inch) | 4-1/3" |
| Overall Length (Decimal Inch) | 4.3307" |
| Overall Length (mm) | 110.00mm |
| Corner Radius (Inch) | 5/127" |
| Corner Radius (Decimal Inch) | 0.0394" |
| Corner Radius (mm) | 1.00mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 4 |
| Shank Type | Plain |
| Material | Carbide |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
17/27"
Mill Diameter (Decimal Inch):
0.6299"
Mill Diameter (mm):
16.00mm
Number of Flutes:
4
Length of Cut (Inch):
1-31/32"
Length of Cut (Decimal Inch):
1.9685"
Length of Cut (mm):
50.00mm
Material:
Carbide
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3307"
Overall Length (mm):
110.00mm
Shank Diameter (Inch):
17/27"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Corner Radius (Inch):
5/127"
Corner Radius (Decimal Inch):
0.0394"
Corner Radius (mm):
1.00mm
