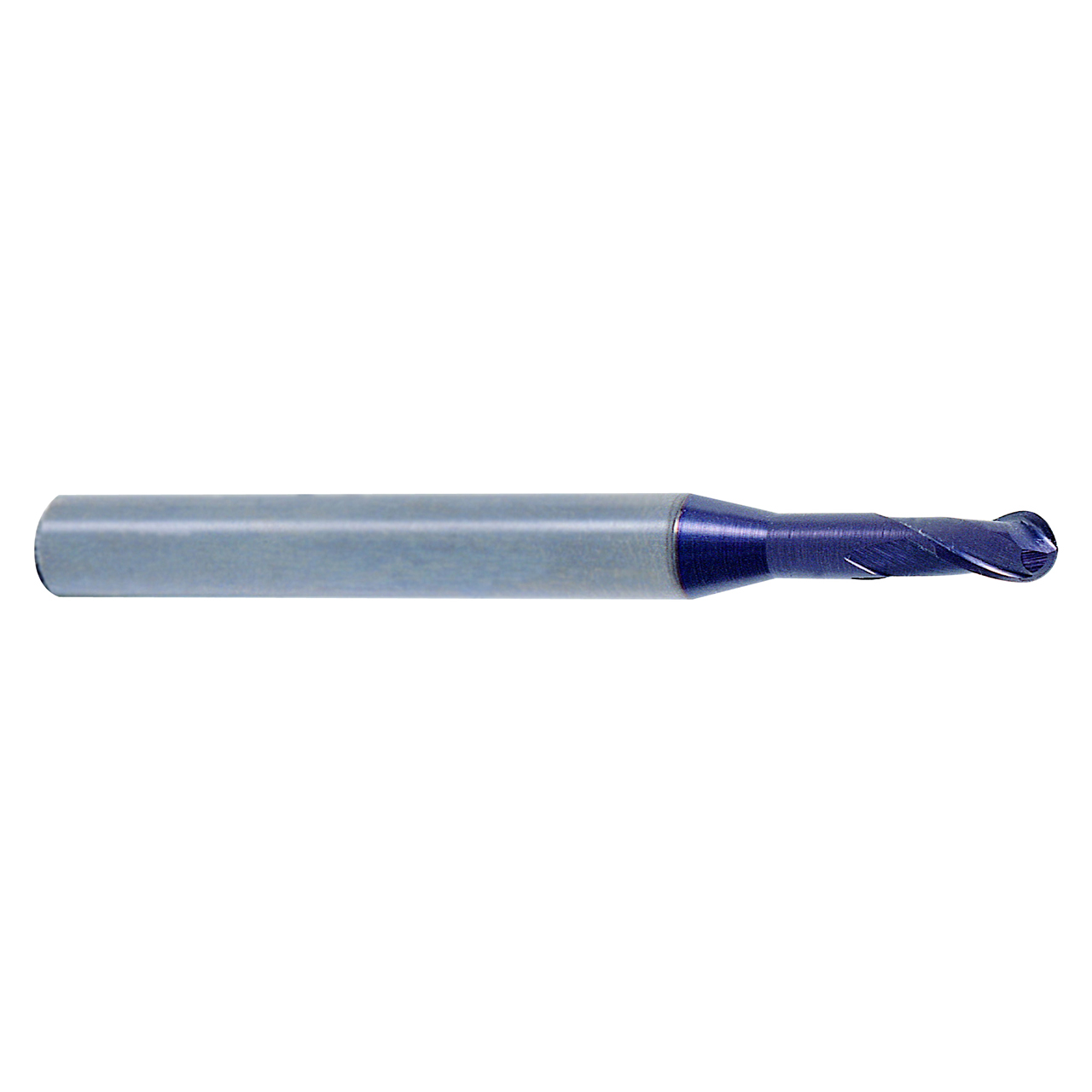

YG1 GM967005 | 3/64" Diameter x 1/8" Shank x 1/16" LOC x 2" OAL x 1/43" Radius 2 Flute Carbide Ball Nose End Mill

$32.62
Brand:
YG1
Mill Diameter (Inch):
3/64"
Mill Diameter (Decimal Inch):
0.0469"
Mill Diameter (mm):
1.19mm
Number of Flutes:
2
Length of Cut (Inch):
1/16"
Length of Cut (Decimal Inch):
0.0625"
Length of Cut (mm):
1.59mm
Material:
Carbide
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
SKU:
25176263
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberGM967005
Mill Diameter (Inch)3/64"
Mill Diameter (Decimal Inch)0.0469"
Mill Diameter (mm)1.19mm
Shank Diameter (Inch)1/8"
Shank Diameter (Decimal Inch)0.1250"
Shank Diameter (mm)3.18mm
Length of Cut (Inch)1/16"
Length of Cut (Decimal Inch)0.0625"
Length of Cut (mm)1.59mm
Overall Length (Inch)2"
Overall Length (Decimal Inch)2.0000"
Overall Length (mm)50.80mm
Ball nose Radius (Inch)1/43"
Ball Nose Radius (Decimal Inch)0.0234"
Ball Nose Radius (mm)0.59mm
LBS (Inch)9/32"
LBS (Decimal Inch)0.2813"
LBS (mm)7.14mm
Neck Diameter (Inch)4/89"
Neck Diameter (Decimal Inch)0.045"
Neck Diameter (mm)1.14mm
Helix (Degree)30 Degree
Number of Flute2
Shank TypePlain
MaterialCarbide
Product TypeBall Nose End Mill
