Product Specifications

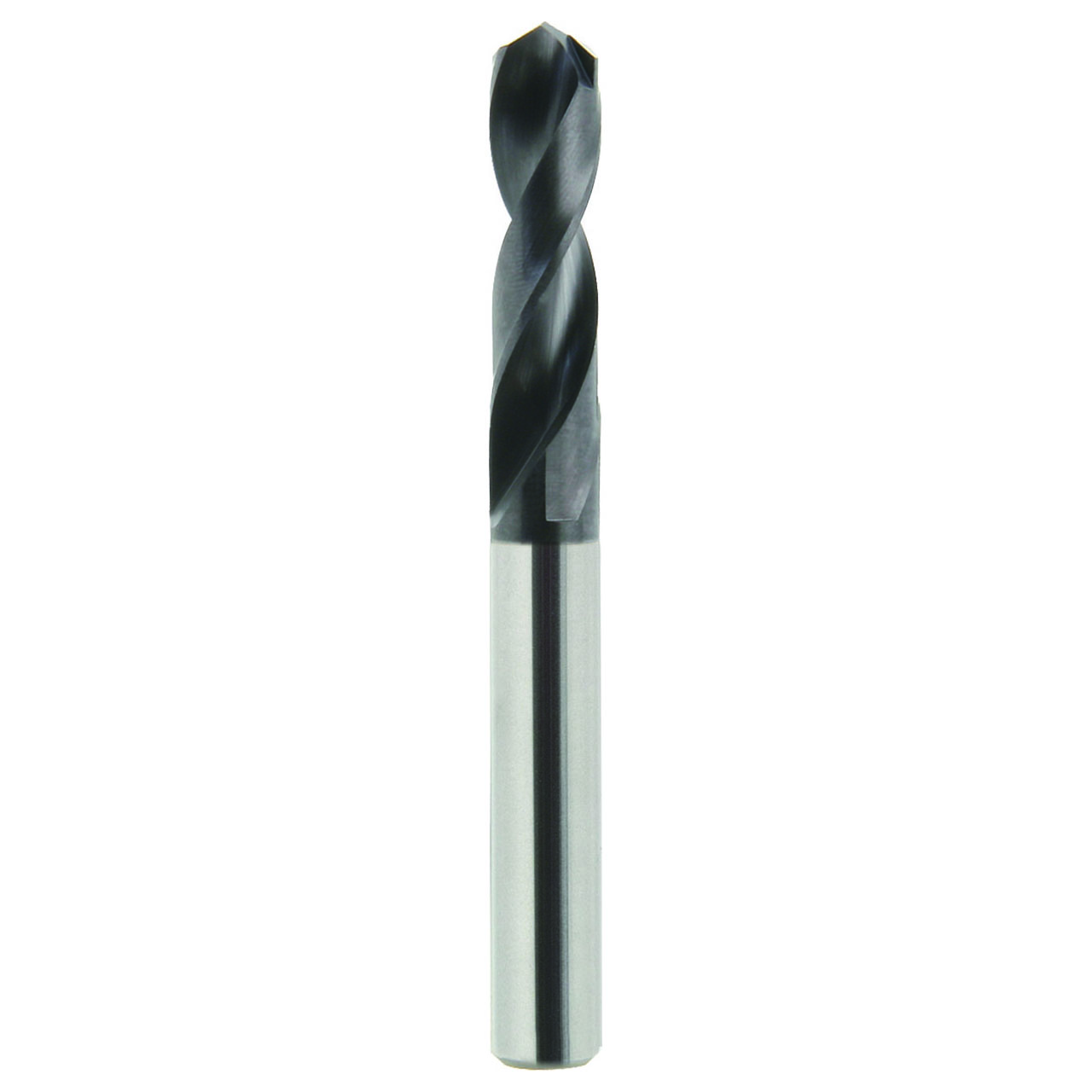

| Manufacturer Part Number | M1700I |
| Diameter (Letter) | 'I' |
| Diameter (Inch) | 3/11" |
| Diameter (Decimal Inch) | 0.2720" |
| Diameter (mm) | 6.91mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Flute Length (Inch) | 1-1/2" |
| Flute Length (Decimal Inch) | 1.5000" |
| Flute Length (mm) | 38.10mm |
| Overall Length (Inch) | 3-5/16" |
| Overall Length (Decimal Inch) | 3.3125" |
| Overall Length (mm) | 84.14mm |
| Point Length (Decimal Inch) | 0.0563" |
| Point Length (mm) | 1.43mm |
| Number of Flutes | 2 |
| Point Angle | 135 Degree |
| Helix Angle | 30 Degree |
| Series | CDRA07 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Hole Tolerance | h7 |
| Application | P,S |
| Cutting Direction | Right |
| Length Type | Stub Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
3/11"
Drill Bit Size (Decimal Inch):
0.2720"
Drill Bit Size (mm):
6.91mm
Drill Bit Size (Letter):
I
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5000"
Flute Length (mm):
38.10mm
Drill Point Angle:
135 Degree
Material:
Premium HSS-PM
Finish/Coating:
TiAlN
Coolant Through:
No
interval quantity:
1
