Product Specifications
| # Manufacturer Number | P01204 |
| Min. Insert Diameter (Decimal Inch) | 0.9688" |
| Min.-Insert-Diameter-(Inch) | 31/32" |
| Min. Insert Diameter (mm) | 24.61mm |
| Max. Insert Diameter (Decimal Inch) | 1.3750" |
| Max. Insert Diameter (Inch) | 1-3/8" |
| Max. Insert Diameter (mm) | 34.93mm |
| Max Drill Depth (Decimal Inch) | 3.3800" |
| Max Drill Depth (Inch) | 3-3/8" |
| Max Drill Depth (mm) | 85.73mm |
| Flute Length (Decimal Inch) | 4.5000" |
| Flute Length (Inch) | 4-1/2" |
| Flute Length (mm) | 114.30mm |
| Overall Length (Decimal Inch) | 10.7800" |
| Overall Length (Inch) | 10-25/32" |
| Overall Length (mm) | 273.84mm |
| Reference Length (Decimal Inch) | 6.3000" |
| Reference Length (Decimal Inch) | 6-19/64" |
| Reference Length (Decimal Inch) | 159.94mm |
| Pipe Tap (Inch) | 1/8" |
| Morse Taper | #4 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

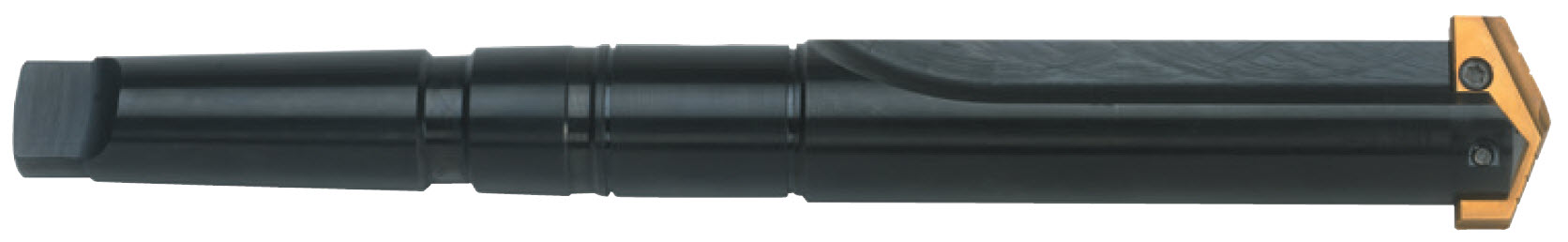

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P01
Minimum Drill Diameter (Inch):
0.9688";Minimum Drill Diameter (Decimal Inch)=31/32"""""
Minimum Drill Diameter (mm):
24.61mm
Maximum Drill Diameter (Inch):
1.3750";Maximum Drill Diameter (Decimal Inch)=1-3/8"""""
Maximum Drill Diameter (mm):
34.93mm
Overall Length (Inch):
10-25/32";Overall Length (Decimal Inch)=10.7800"""""
Overall Length (mm):
10.7800";Maximum Drill Depth (Inch)=3-3/8"""""
Maximum Drill Depth (Decimal Inch):
3.3800";Maximum Drill Depth (mm)=85.73mm"""
Flute Type:
Straight
Shank Type:
Morse Taper
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
