Product Specifications
Diameter (Decimal Inch) | ST702 |
Diameter (Decimal Inch) | 0.8835" |
Diameter (mm) | 22.44mm |
Overall Length (Decimal Inch) | 4.6900" |
Overall Length (mm) | 119.13mm |
Thread Length (Decimal Inch) | 1.0000" |
Thread Length (mm) | 25.40" |
Square Length (Decimal Inch) | 1.0000" |
Square Length (mm) | 25.40" |
Shank Diameter (Decimal Inch) | 0.6970" |
Shank Diameter (mm) | 17.70mm |
Square Size (Decimal Inch) | 0.5230" |
Square Size (mm) | 13.28mm |
Neck Diameter (Decimal Inch) | 0.6850" |
Neck Diameter (mm) | 17.40mm |
Drill Size (Decimal Inch) | 0.7795" |
Drill Size (mm) | 19.80mm |
Useable Length (Decimal Inch) | 2.2200" |
Useable Length (mm) | 56.39mm |
Length/Diameter | 2.5xD |
Coolant Through | No |
Tap Type | SPFL |
Number Of Flutes | 3 |
Size | 3/4 |
Pitch | 10 TPI |
Thread Series | UNC |
Thread Class | 2B |
Chamfer Type | Bottoming |
Chamfer Length | 1.5P-2P |
Finish | Hardslick |
Material | HSSE-V53 |
Blank Standard | 322 |
Helix Angle | 40 Degree |

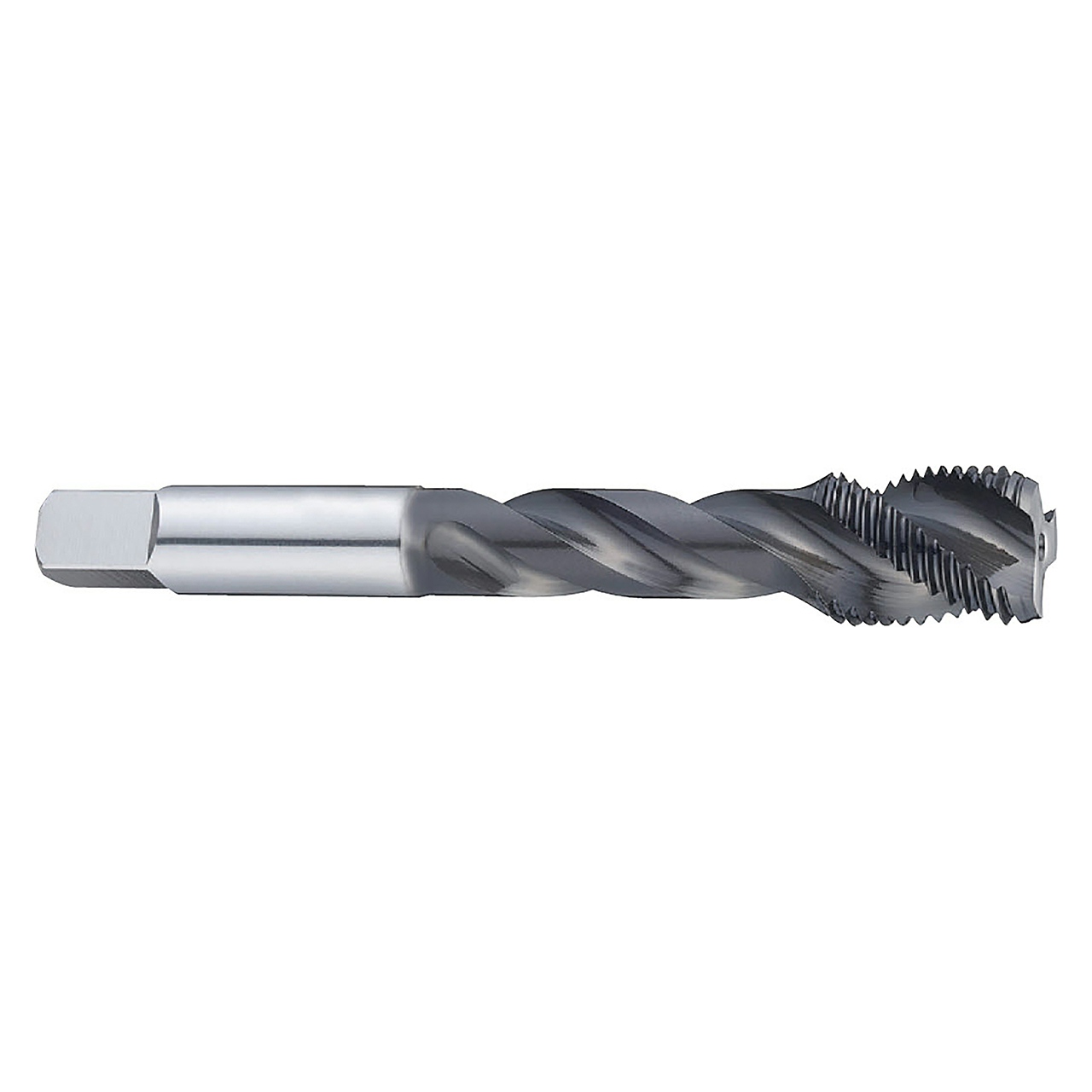

Product Type | Spiral Flute Tap |
