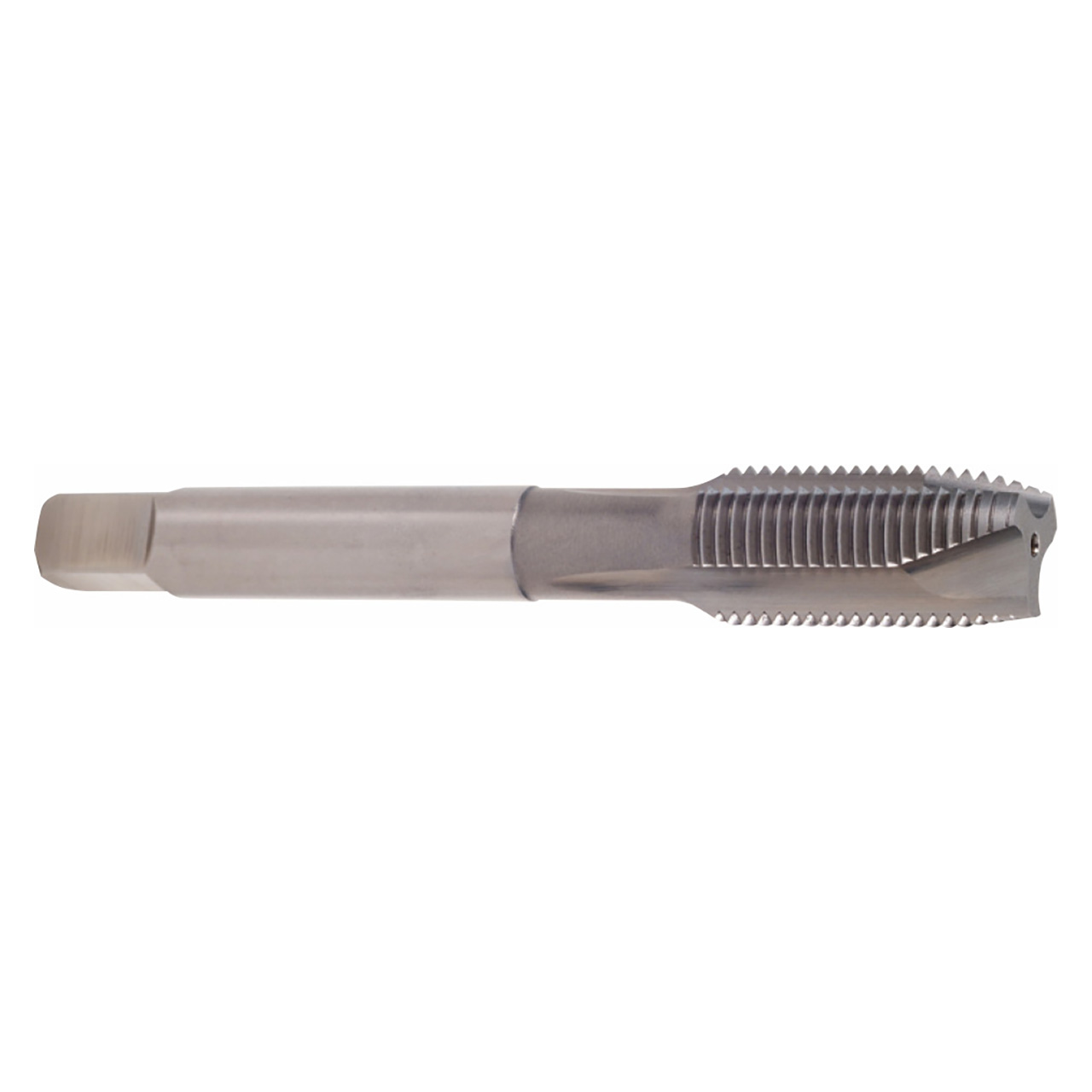

| Manufacturer Part Number | T2496243 |
| Diameter (Decimal Inch) | 0.1380" |
| Diameter (mm) | 3.51mm |
| Thread Size | #6 |
| Pitch | 32 TPI |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Thread Length (Decimal Inch) | 0.4130" |
| Thread Length (mm) | 10.49mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.0940" |
| Neck Diameter (mm) | 0.00mm |
| Useable Length (Decimal Inch) | 0.6890" |
| Useable Length (mm) | 17.50mm |
| Drill Size (Decimal Inch) | 0.1096" |
| Drill Size (mm) | 2.78mm |
| Number of Flutes | 2 |
| Pitch Limit | H3 |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Bright |
| Material | HSSE-V3 |
| Chamfer Length | 4P-5P |
| Chamfer Type | Plug |
| Product Type | Straight Flute Thread Mill |
