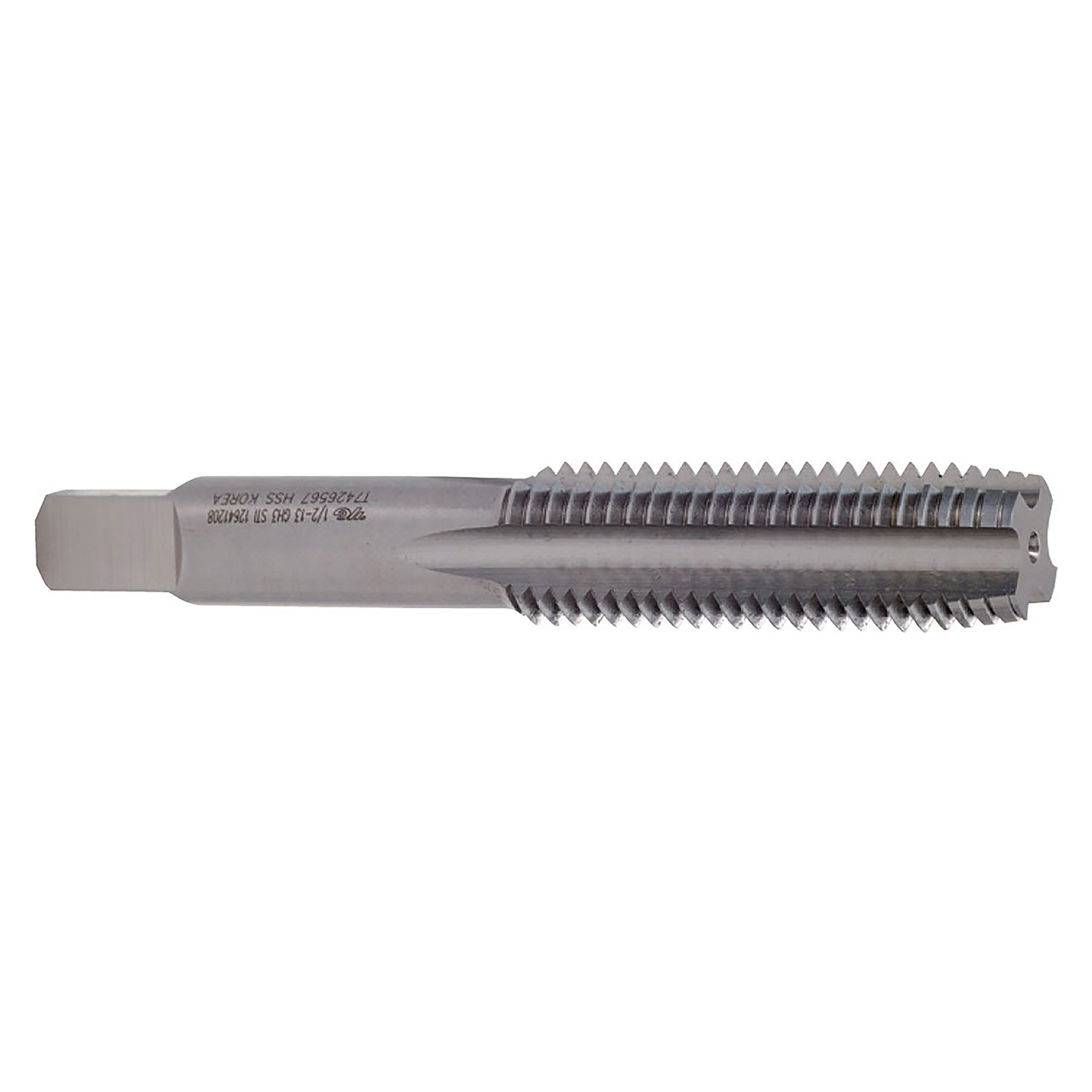

YG1 T7426168 | UNC #4 - 40 Size x 0.690" Thread Length x 0.141" Shank x 2.000" OAL H2 Bottoming Chamfer 3 Flute Bright Coated HSS T7426 Spiral Flute Tap

$19.95 $14.16
(You save $5.79)
Brand:
YG1
Thread Size (Decimal Inch):
0.1120"
Thread Size (mm):
2.84mm
Thread Limit:
H2
Number of Flutes:
3
Chamfer:
Bottoming
Finish/Coating:
Bright
Material:
HSS
Threads per Inch (TPI):
40
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
interval quantity:
1
SKU:
15011983
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberT7426168
Thread Size#4
Thread Size (Decimal Inch)0.112"
Thread Size (mm)2.84mm
Threads per Inch (TPI)40
Thread SeriesUNC
Pitch LimitH2
Chamfer TypeBottoming
Chamfer Length1.5P-2P
Overall Length (Decimal Inch)2.000"
Overall Length (mm)50.80mm
Thread Length (Decimal Inch)0.690"
Thread Length (mm)17.53mm
Square Length (Decimal Inch)0.190"
Square Length (mm)4.83mm
Shank Diameter (Decimal Inch)0.141"
Shank Diameter (mm)3.58mm
Square Size (Decimal Inch)0.110"
Square Size (mm)2.79mm
Drill Size (Decimal Inch)0.120"
Drill Size (mm)3.05mm
Connection Size (Decimal Inch)0.141" x 0.110"
Connection Size (mm)3.58 x 2.79mm
Usable Length (Decimal Inch)0.690"
Usable Length (mm)17.53mm
Length / Diameter2.0 x D
Number of Flutes3
CoatingBright
MaterialHSS
Blank Standard322
SeriesT7426
Product TypeSpiral Flute Tap
