Product Specifications
| Manufacturer Part Number | T7426408 |
| Thread Size (Inch) | 1/4" |
| Thread Size (Decimal Inch) | 0.250" |
| Thread Size (mm) | 6.35mm |
| Threads per Inch (TPI) | 20 |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Overall Length (Decimal Inch) | 2.720" |
| Overall Length (mm) | 69.09mm |
| Thread Length (Decimal Inch) | 1.130" |
| Thread Length (mm) | 28.70mm |
| Square Length (Decimal Inch) | 0.380" |
| Square Length (mm) | 9.65mm |
| Shank Diameter (Decimal Inch) | 0.318" |
| Shank Diameter (mm) | 8.08mm |
| Square Size (Decimal Inch) | 0.238" |
| Square Size (mm) | 6.05mm |
| Drill Size (Decimal Inch) | 0.264" |
| Drill Size (mm) | 6.70mm |
| Connection Size (Decimal Inch) | 0.318" x 0.238" |
| Connection Size (mm) | 8.08 x 6.05mm |
| Usable Length (Decimal Inch) | 1.130" |
| Usable Length (mm) | 28.70mm |
| Length / Diameter | 2.0 x D |
| Number of Flutes | 3 |
| Coating | Bright |
| Material | HSS |
| Blank Standard | 322 |
| Series | T7426 |

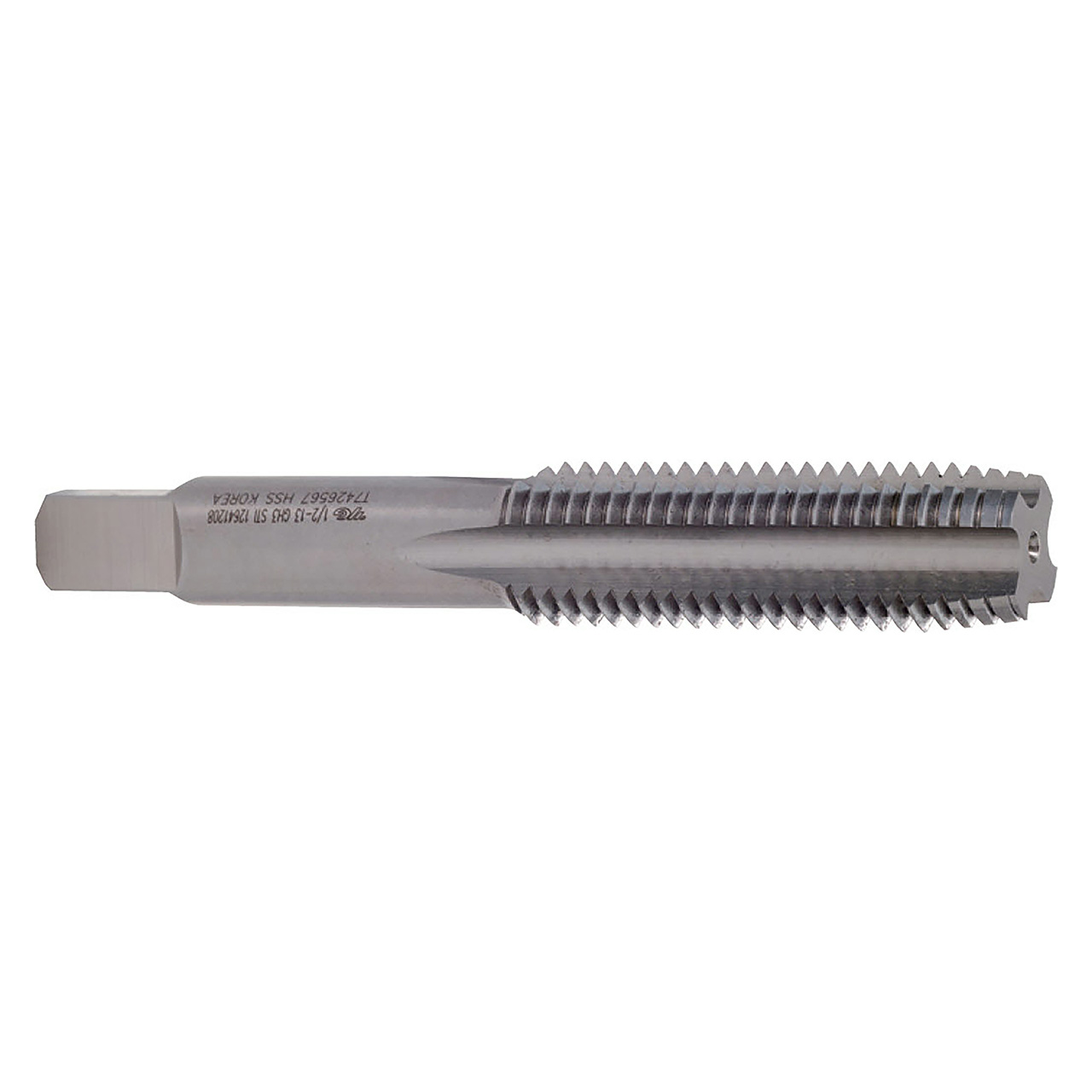

| Product Type | Spiral Flute Tap |
