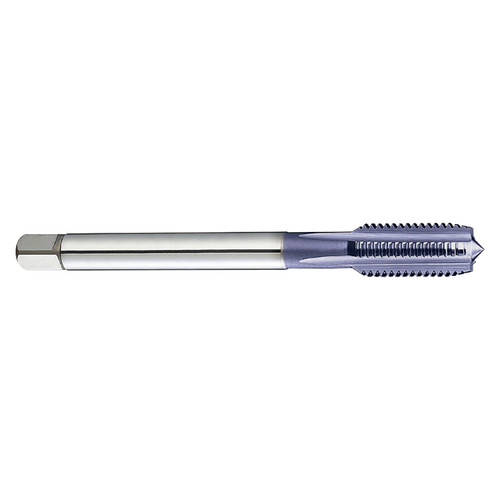

YG1 TKS67182 | 0.1120" Diameter x 0.1410" Shank x 1.8800" OAL 3 Flute TICN Coated HSS-PM Straight Flute Tap

$18.54
Brand:
YG1
Tap Type (Interrupted Thread Machine Tap, Machine Tap, Standard Hand Tap, etc):
STFL
Overall Length (Inch):
1.8800"
Overall Length (mm):
47.75mm
Number of Flutes:
3
Chamfer:
Modified Bottom Chamfer Type
Material:
HSS-PM
Finish/Coating:
TICN
Through Coolant:
No
SKU:
15035921
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)TKS67182
Diameter (Decimal Inch)0.1120"
Diameter (mm)2.84mm
Overall Length (Decimal Inch)1.8800"
Overall Length (mm)47.75mm
Thread Length (Decimal Inch)0.2090"
Thread Length (mm)5.31"
Square Length (Decimal Inch)0.1900"
Square Length (mm)4.83mm
Shank Diameter (Decimal Inch)0.1410"
Shank Diameter (mm)0.1100"
Square Size (Decimal Inch)0.1100"
Square Size (mm)2.79mm
Neck Diameter (Decimal Inch)0.0770"
Neck Diameter (mm)1.96mm
Drill Size (Decimal Inch)0.0931"
Drill Size (mm)2.36mm
Useable (Decimal Inch)0.5630"
Useable (mm)14.30mm
Neck Length (Decimal Inch)0.5630"
Neck Length (mm)14.30mm
Neck Length (mm)STFL
Number of Flutes3
Size#4
Pitch48 TPI
Thread SeriesUNF
Pitch LimitH2
Chamfer TypeModified Bottom Chamfer Type
Chamfer Length2P-3P
CoatingTICN
MaterialHSS-PM
Blank Standard302A
Helix Angle45 Degree
Coolant ThroughNo
Product TypeStraight Flute Tap
