Product Specifications
Diameter (Decimal Inch) | TTS61244 |
Diameter (Decimal Inch) | 0.1575" |
Diameter (mm) | 4.00mm |
Overall Length (Decimal Inch) | 2.1300" |
Overall Length (mm) | 54.10mm |
Thread Length (Decimal Inch) | 0.2760" |
Thread Length (mm) | 7.01" |
Square Length (Decimal Inch) | 0.2500" |
Square Length (mm) | 6.35mm |
Shank Diameter (Decimal Inch) | 0.1680" |
Shank Diameter (mm) | 0.1310" |
Square Size (Decimal Inch) | 0.1310" |
Square Size (mm) | 3.33mm |
Neck Diameter (Decimal Inch) | 0.1190" |
Neck Diameter (mm) | 3.02mm |
Drill Size (Decimal Inch) | 0.1324" |
Drill Size (mm) | 3.36mm |
Useable (Decimal Inch) | 0.7680" |
Useable (mm) | 19.51mm |
Neck Length (Decimal Inch) | 0.7680" |
Neck Length (mm) | 19.51mm |
Neck Length (mm) | SPFL |
Number of Flutes | 3 |
Size | M4 |
Pitch | 0.7 TPI |
Thread Series | M |
Pitch Limit | D4 |
Chamfer Type | Modified Bottoming |
Chamfer Length | 2P-3P |
Coating | TIN |
Material | HSS-PM |
Blank Standard | 302A |
Helix Angle | 45 Degree |
Coolant Through | No |

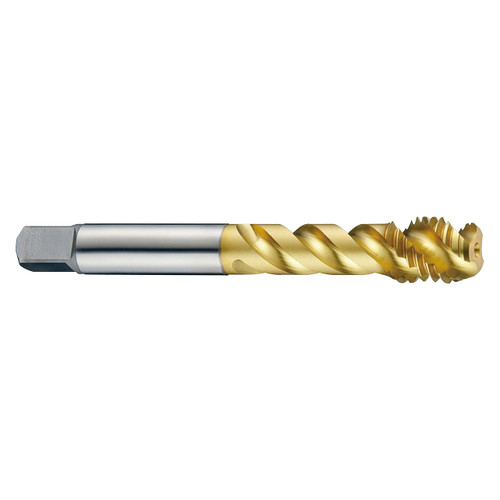

Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.1575"
Thread Size (mm):
4.00mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
HSS-PM
Finish/Coating:
TIN
Through Coolant:
No
Threads per Inch (TPI):
0.7 TPI
Overall Length (Inch):
2.1300"
Overall Length (mm):
54.10mm
