Product Specifications
| Manufacturer Part Number | VS513M |
| Body Diameter 1 (Inch) | 17/18" |
| Body Diameter 1 (Decimal Inch) | 0.9449" |
| Body Diameter 1 (mm) | 24.00mm |
| Connection Machine Side (mm) | 32.00mm |
| Connection Work Side (Decimal Inch) | 0.472" |
| Connection Machine Side (Decimal Inch) | 1.2598" |
| Connection Machine Side (Inch) | 1-20/77" |
| Connection Work Side (Inch) | 43/91" |
| Connect Work Side (mm) | 12.00mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.2992" |
| Overall Length (mm) | 160.00mm |
| Body Length (Inch) | 2" |
| Body Length (Decimal Inch) | 2.0008" |
| Body Length (mm) | 50.82mm |
| Clamping Length (Inch) | 1-5/12" |
| Clamping Length (Decimal Inch) | 1.4173" |
| Clamping Length (mm) | 36.00mm |
| Connection Bore Depth (Inch) | 1-8/9" |
| Connection Bore Depth (Decimal Inch) | 1.8998" |
| Connection Bore Depth (mm) | 48.00mm |
| Thread Diameter Size | M10x1.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |

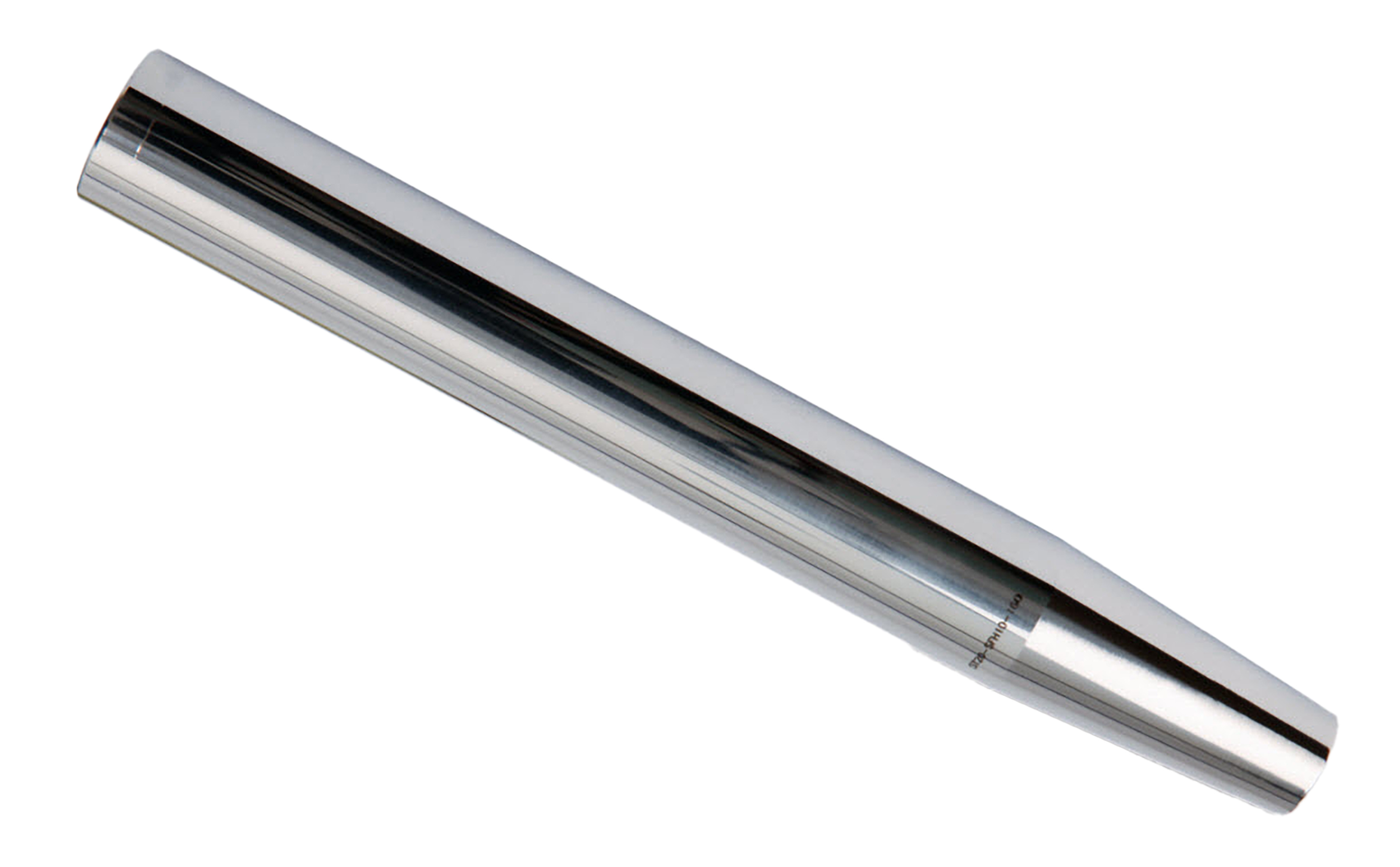

| Product Type | Shank Shrink Fit Extension |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Overall Length (Inch):
6-3/10"
Overall Length (Decimal Inch):
6.2992"
Overall Length (mm):
160.00mm
interval quantity:
1
