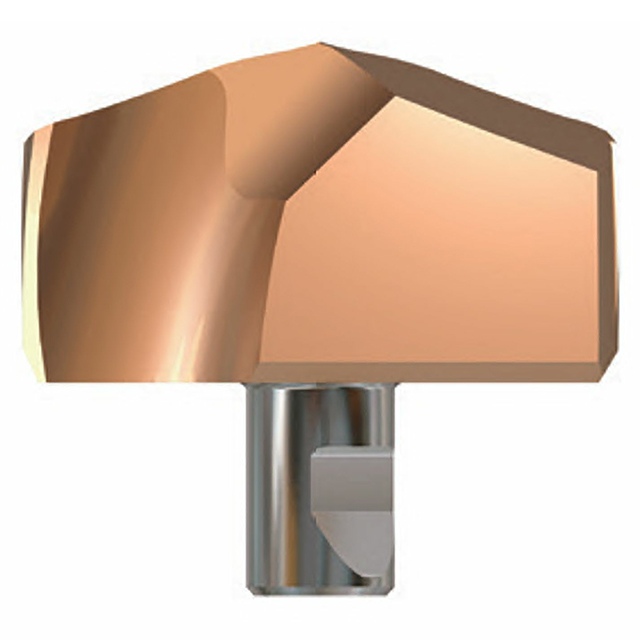

Product Specifications
| EDP Number | Y141H1580 |
| Diameter (Decimal Inch) | 0.6220" |
| Diameter (Inch) | 51/82" |
| Diameter (mm) | 15.80mm |
| Thickness (Decimal Inch) | 0.2160" |
| Thickness (Inch) | 19/88" |
| Thickness (mm) | 5.49mm |
| Insert Height (Decimal Inch) | 0.5680" |
| Insert Height (Inch) | 46/81" |
| Insert Height (mm) | 14.43mm |
| Point Length (Decimal Inch) | 0.1132" |
| Point Length (mm) | 2.88mm |
| Series | Y141H |
| Point Angle (Degree) | 140 Degree |
| Holder Type | S14 |
| Coating | H-Coated |
| Material | Carbide |
| Material Grade | Micro Grain |
| Application | P,K |
| Trade Name | YG I-One Drill Inserts |
| Product Type | Replaceable Drill Tip |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.6220"
Diameter (mm):
15.80mm
Included Angle:
140 Degree
Material:
Carbide
Series:
Y141H
Finish/Coating:
H-Coated
Insert Seat Size:
S14
interval quantity:
1
