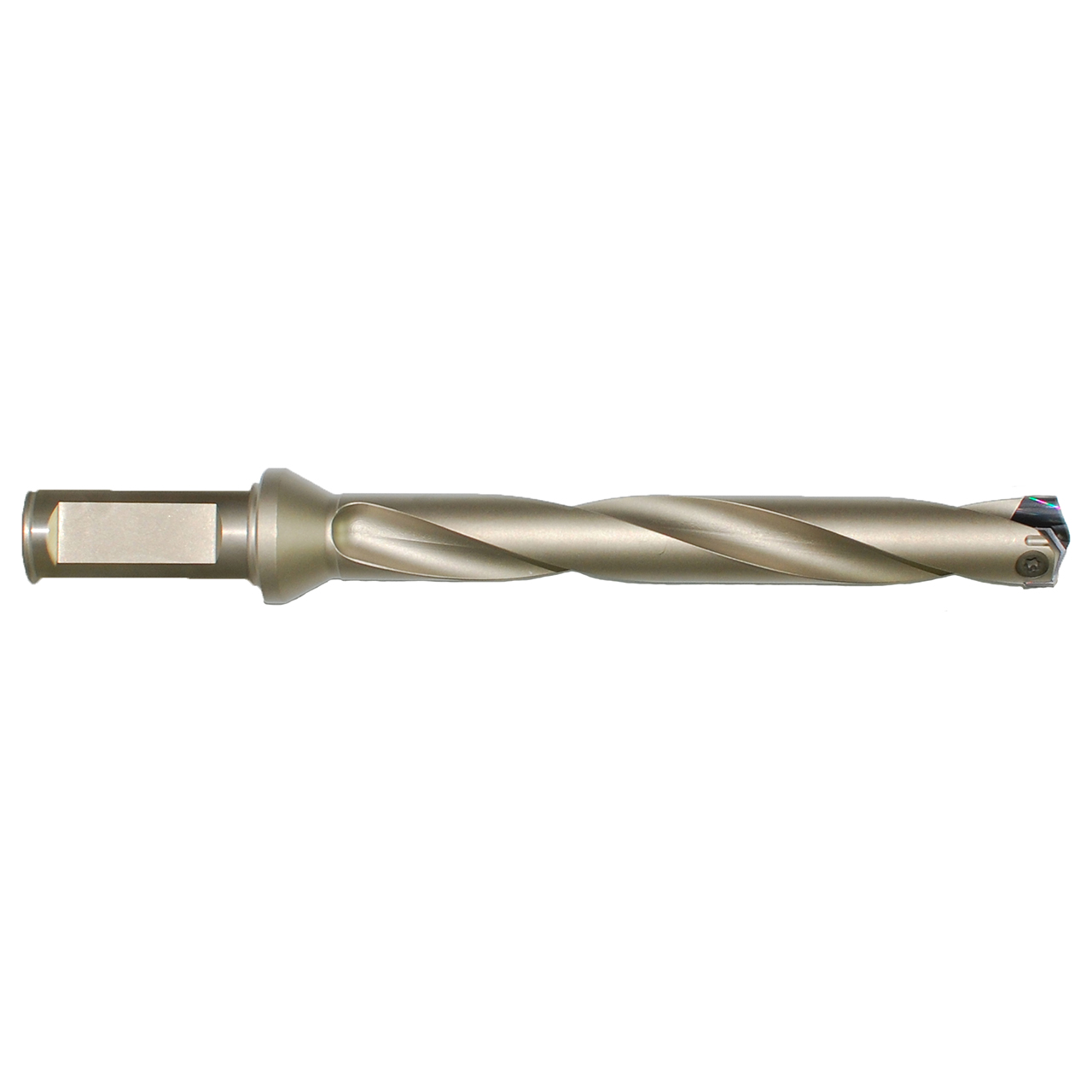

YG1 ZG0502 | 0.9409" Diameter x 2.3750" Shank x 4.8281" Maximum Drill Depth x 8.4688" OAL 2 Flute Nickel-Based Coated Alloy Steel Dream Drill Holder

$597.25 $406.13
(You save $191.12)
Brand:
YG1
Series:
ZG
Maximum Drill Depth (Inch):
4-53/64"
Maximum Drill Depth (Decimal Inch):
4.8281"
Maximum Drill Depth (mm):
122.63mm
Through Coolant:
Yes
interval quantity:
1
SKU:
10032291
UPC:
Weight:
1.85 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
YG1 ZG0502 | 0.9409" Diameter x 2.3750" Shank x 4.8281" Maximum Drill Depth x 8.4688" OAL 2 Flute Nickel-Based Coated Alloy Steel Dream Drill Holder

Product Specifications
# Manufacturer NumberZG0502
Diameter (Decimal Inch)0.9409"
Diameter (mm)23.90mm
Shank Diameter (mm)31.75mm
Shank Diameter (Decimal Inch)1.2500"
Minimum Insert Diameter (Decimal Inch)0.9646"
Minimum Insert Diameter (mm)24.50mm
Maximum Insert Diameter (Decimal Inch)0.9724"
Maximum Insert Diameter (mm)24.70mm
Shank Length (Decimal Inch)2.3750"
Shank Length (mm)60.33mm
Flange Diameter (Decimal Inch)1.4688"
Flange Diameter (Inch)1-15.32
Flange Diameter (mm)37.31mm
Maximum Drill Depth (Decimal Inch)4.8281"
Maximum Drill Depth (mm)122.63mm
Overall Length (Decimal Inch)8.4688"
Overall Length (mm)215.11mm
Length Diameter5xD
Number of Flutes2
SeriesZG
Coolant ThroughYes
CoatingNickel-Based
MaterialAlloy Steel
Flute TypeSpiral
Product TypeDream Drill Holder
