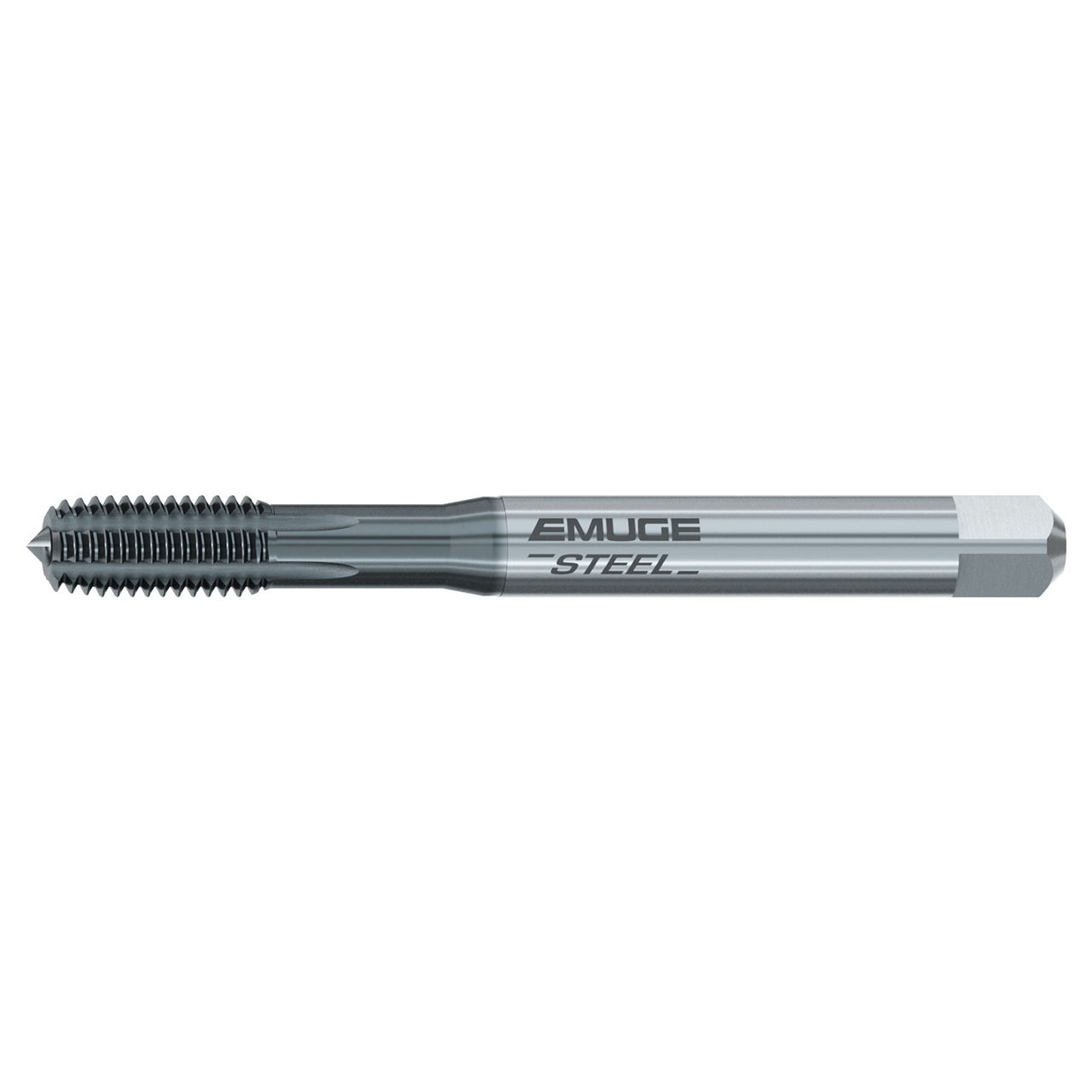

Emuge BU929000.5633 | #4-48 Thread Size x 2.205" OAL Flute TICN Coated Thread Forming STI Tap

$74.16
Brand:
Emuge
Thread Size:
#4-48
Finish/Coating:
TICN
Overall Length (Inch):
2-13/64"
Overall Length (Decimal Inch):
2.2050"
Overall Length (mm):
56.01mm
Thread Standard:
STI-UNF
Shank Diameter (Inch):
9/64"
Shank Diameter (Decimal Inch):
0.1410"
Shank Diameter (mm):
3.58mm
interval quantity:
1
SKU:
15039134
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Features:

  • The Druck Steel roll form tap for the chipless production of internal threads, blind and though hole
  • Steel Alloys & Long Chipping Materials
  • TICN coated for additional wear resistance
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU929000.5633
Thread Size#4-48
Thread Diameter Size#4
Thread StandardSTI-UNF
Thread per Inch (TPI)48 TPI
Tap Square (Decimal Inch)0.110"
Thread Length (Decimal Inch)0.472"
Overall Length (Decimal Inch)2.205"
Shank Machine Side Connection Diameter (Decimal Inch)0.141"
Thread Tolerance Class2BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRoll Form - Druck
ApplicationSTI Taps
Product TypeThread Forming STI Tap
