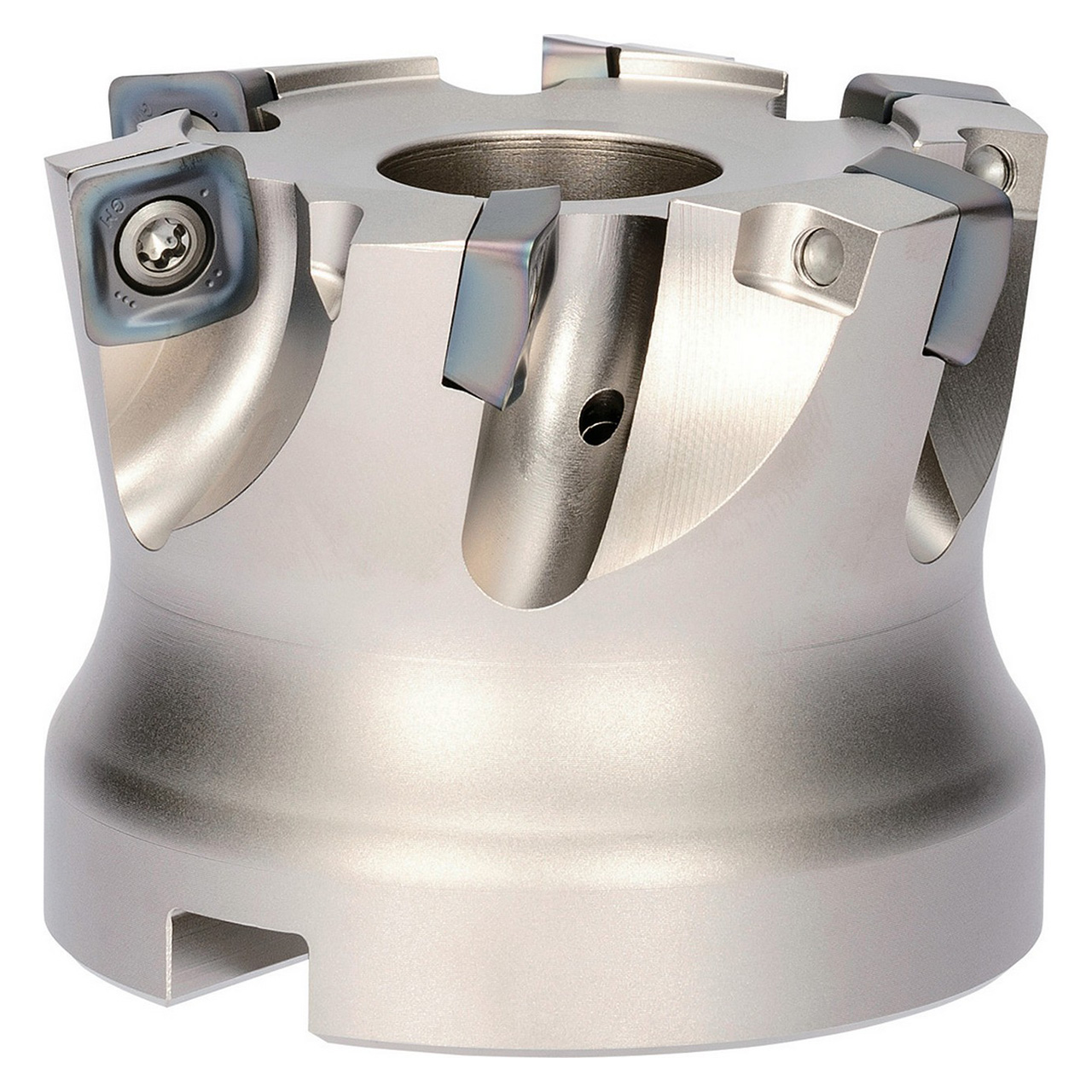

Kyocera Precision Tools THN07698 | MFH125R147TM 4.0158-4.9213" Diameter 7 Flute Steel Indexable High-Feed Face Mill

$1,237.48 $1,027.11
(You save $210.37)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
4-59/64"
Cutting Diameter (Decimal Inch):
4.9213"
Cutting Diameter (mm):
125.00mm
Maximum Depth of Cut (Inch):
5/64"
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2mm
Arbor Hole Diameter (Inch):
1-37/64"
Arbor Hole Diameter (Decimal Inch):
1.5748"
Arbor Hole Diameter (mm):
40.00mm
Series:
MFHR;Cutter Style=MFH"
Number of Cutter Inserts:
7
interval quantity:
1
SKU:
23233705
UPC:
Weight:
7.31 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 10 Degree Lead angle high feed face mill
  • Application: facing, shouldering, slotting, ramping, helical milling, plunging
  • Clamp screw insert holding design
  • Compatible with (7) SOMT14 inserts
  • Reduced chattering with convex cutting edge design controls initial impact when entering the workpiece

Product Specifications
EDP NumberTHN07698
Maximum Depth of Cut (Decimal Inch)0.0787"
Maximum Depth of Cut (mm)90.00mm
Cutting Diameter (Decimal Inch)4.0158 - 4.9213"
Cutting Diameter (mm)102.00 - 125.00mm
Cutting Diameter Minimum (Decimal Inch)4.0158"
Cutting Diameter Minimum (mm)102.00mm
Cutting Diameter Maximum (Decimal Inch)4.9213"
Cutting Diameter Maximum (mm)125.00mm
Cutting Diameter Maximum (mm)1.5748"
Connection Bore Diameter (mm)40.00mm
Contact Surface Diameter Machine Side (Decimal Inch)3.9370"
Contact Surface Diameter Machine Side (mm)100.00mm
Tool Entering Angle ( Degree)10 Degree
ApplicationFacing | Helical Milling | Plunging | Ramping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
Cutter PitchStandard Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes7
Number of Inserts7
