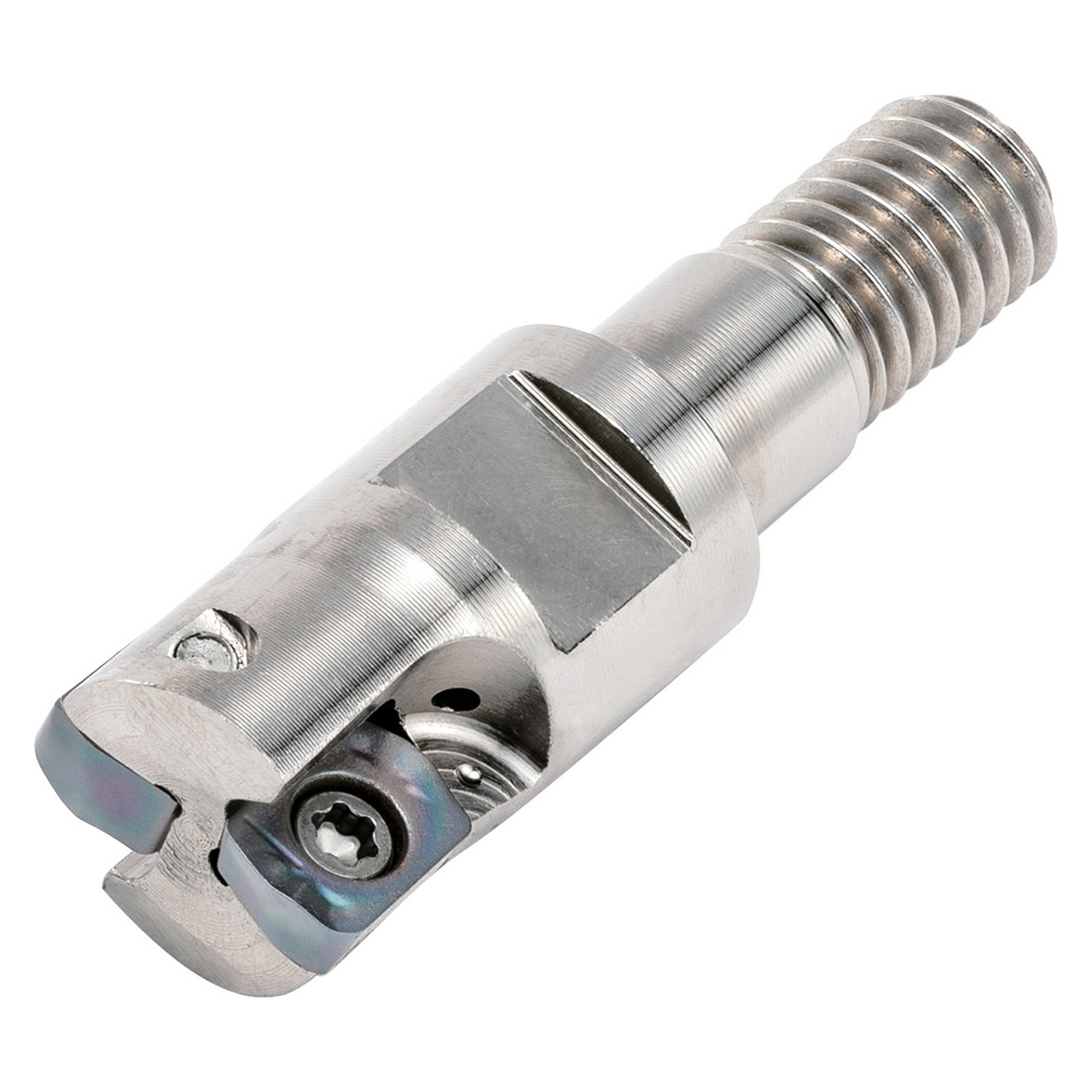

Features:
- Reduce cycle time during roughing applications
- Low resistance and durable design aids in chatter resistant machining
- Molded convex cutting edge controls initial impact when entering the workpiece
- Wide range of machining applications
- Can replace solid end mills to reduce machining costs
Product Specifications
| EDP Number | THN08325 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197" |
| Maximum Depth of Cut (mm) | 10.00mm |
| Cutting Diameter (Decimal Inch) | 0.4803 - 0.6299" |
| Cutting Diameter (mm) | 12.20 - 16.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.4803" |
| Cutting Diameter Minimum (mm) | 12.20mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.6299" |
| Cutting Diameter Maximum (mm) | 16.00mm |
| Connection Diameter (Decimal Inch) | 0.3347" |
| Connection Diameter (mm) | 8.50mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.5787" |
| Contact Surface Diameter Machine Side (mm) | 14.70mm |
| Shank Height (Decimal Inch) | 0.4724" |
| Shank Height (mm) | 12.00mm |
| Application | Facing | Helical Milling | High Feed | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 4 |
| Number of Inserts | 4 |
| Shank Type | Modular Connection |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
MFHO;Cutting Diameter (Inch)=5/8"""
Cutting Diameter (Decimal Inch):
0.6299"
Cutting Diameter (mm):
16.00mm
Insert Style:
MFH
Maximum Depth of Cut (Inch):
1/64"
Maximum Depth of Cut (Decimal Inch):
0.0197"
Maximum Depth of Cut (mm):
0.5mm
