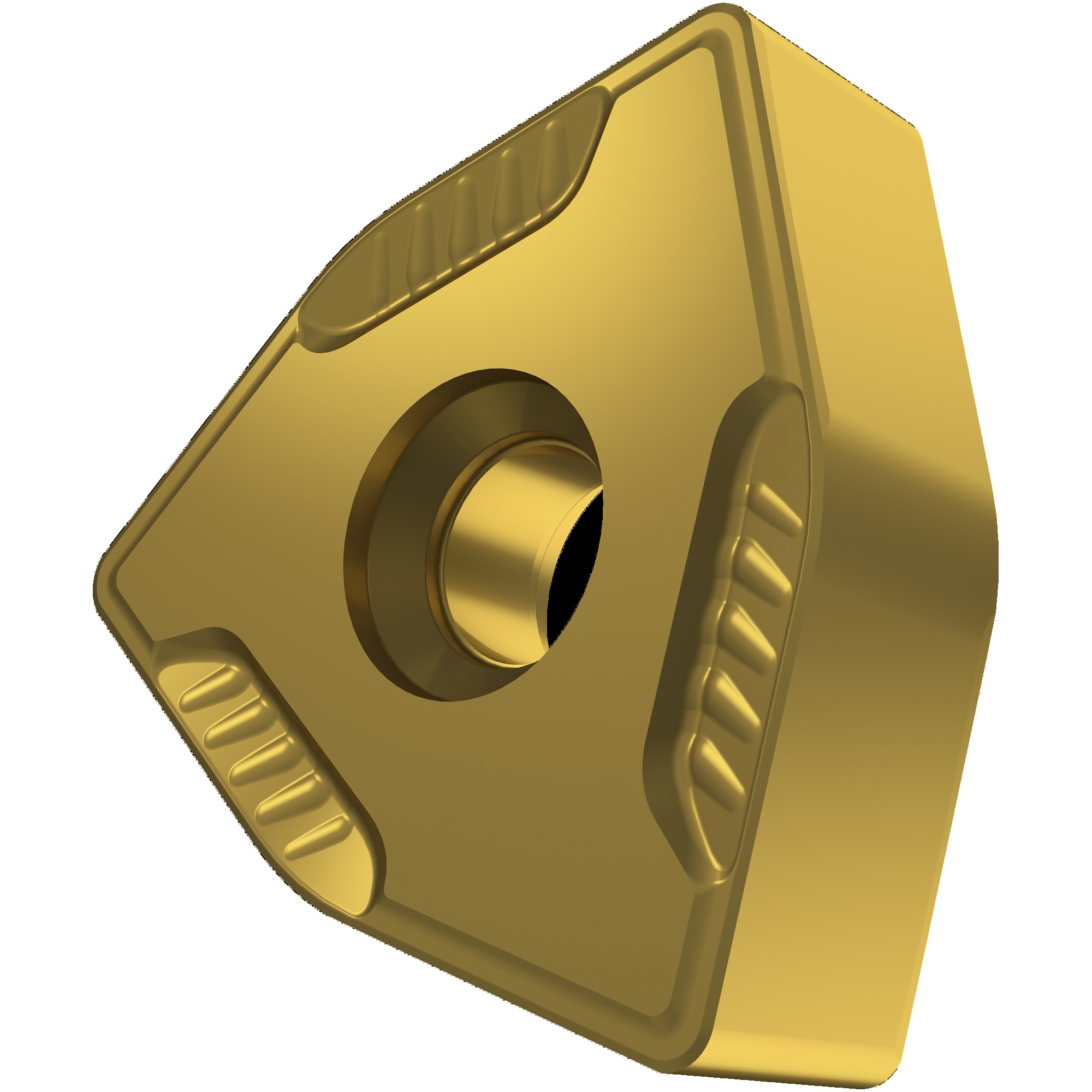

Double-sided negative barpeeling insert, 80° trigon with inscribed circle diameter of 31.75 mm, 13 mm thick for 8 mm depth of cut,, chip-breaker PR with S01 cutting edge preperation, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for high strength steels.
Product Specifications
| EDP Number | 6752844 |
| Min Cutting Depth (mm) | 1 mm |
| Max Depth of Cut (mm) | 8 mm |
| Max Depth of cut (Inch) | 0.315" |
| Coating Property | 1 |
| Insert Included Angle | 85 |
| Fixing Hole Diameter (mm) | 9 mm |
| Fixing Hole Diameter (Inch) | 0.359" |
| Cutting Edge Length (mm) | 20 mm |
| Cutting Edge Length (Inch) | 0.787" |
| Inscribed Circle Diameter (mm) | 31.75 mm |
| Inscribed Circle Diameter (Inch) | 1.25" |
| Insert Thickness (mm) | 13 mm |
| Insert Thickness (Inch) | 0.512" |
| Major Cutting Edge Angle | 25 |
| Wiper Edge Length (mm) | 15 mm |
| Wiper edge Length (Inch) | 0.591" |
| Coating Process | MT-CVD |
| Coating | 6630 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
| Chipbreaker Manufacturer's Designation | PR-S01 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
25/32"
Length (Decimal Inch):
0.7870"
Length (mm):
20mm
Inscribed Circle (Inch):
1-1/4"
Inscribed Circle (Decimal Inch):
1.2500"
Inscribed Circle (mm):
31.75mm
Thickness (Inch):
33/64"
Thickness (Decimal Inch):
0.5120"
Thickness (mm):
13mm
interval quantity:
3
