Roemheld CLR-803-F | 5/16" Tubing OD Size Steel Banjo Elbow Fitting

Roemheld Banjo Elbow

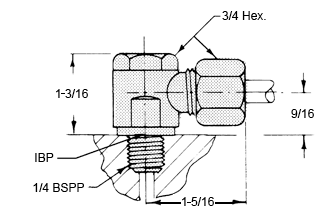

CLR-402-F90° banjo-type elbow fitting for any standard 1/4" BSPP port. Compression nut accepts standard 5/16" O.D. tubing. Compression fittings are designed to secure heavy-wall tubing using a bite-type ferrule and compression nut. These fittings accept The standard 5/16" O.D. tubing (cut off straight and deburred) as well as Fixture Hose and Heavy-Duty Hose with compression-type tube ends.

Application Information

Design Considerations

7250 psi max imum operating pressure. Use these fittings only with The standard steel tubing and hydraulic hose. The standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, 0.065" wall thickness, 22,800 psi minimum burst pressure.

Material

Material	Heat Treat	Finish	DFARS	RoHS
Steel	-	-	Yes	Yes

Parts Specification

Maximum Operating Pressure (PSI)	Fits Port Size	Tubing O.D. Size (Inch)
7500 PSI	1/4" BSPP	5/16"
