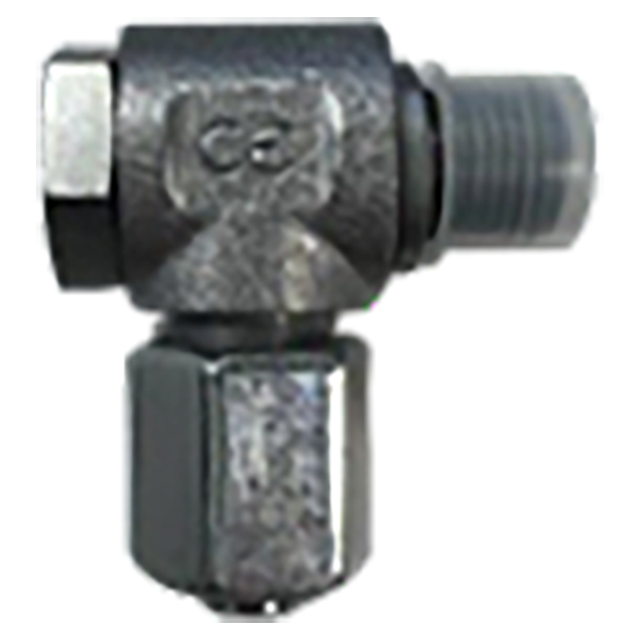

CLR-814-F90° banjo-type elbow fitting for any standard 1/4" BSPP port. Male JIC 37° end accepts standard 5/16" O.D. flared tubing. JIC-standard 37° fittings accept The standard 5/16" O.D. tubing (cut off straight, deburred, and flared)
7250 psi maximum operating pressure. Use these fittings only with The standard steel tubing. The standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, 0.065" wall thickness, 22,800 psi minimum burst pressure.
Steel. DFARS and RoHS compliant.
| Maximum Operating Pressure (PSI) | Fits Port Size | Tubing O.D. Size (Inch) |
| 7500 PSI | 1/4" BSPP | 5/16" |
