Features

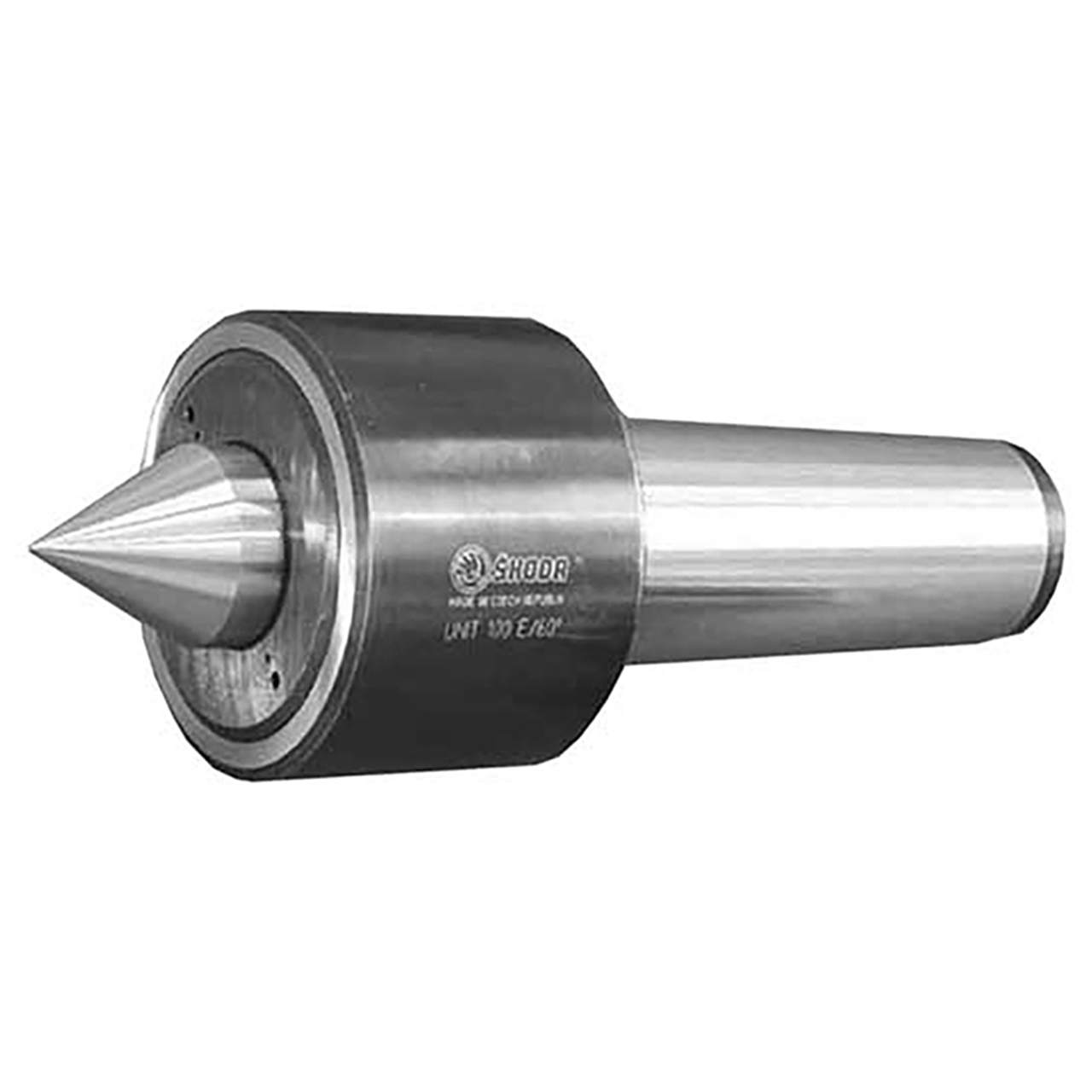

- For clamping of heavy workpieces at lathes
- The rigid structure and seating of the turning part is characterized by long service life
- The model EXTRA is commonly used for work at grinding machines
- Centers with the apex angle of 60 degree for reduction of deformations of the machine (tailstock, bed, headstock) from axial clamping forces
- The live centers are provided with shanks according to DIN 228 and ISO 296 (without clamping thread)
Product Specifications
| Manufacturer Part Number | 310920 |
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (lbs.) | 3300 lbs. |
| Point Diameter (Decimal Inch) | 3.14" |
| Tip Diameter (Decimal Inch) | 1.58" |
| Included Angle (Degree) | 60 Degree |
| Model Number | CSN 243325 |
| Head Length (Decimal Inch) | 4.1" |
| Overall Length (Decimal Inch) | 7.85" |
| Product Type | Live Center |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Skoda
Diameter (Inch):
3-9/64"
Diameter (Decimal Inch):
3.1400"
Diameter (mm):
79.76mm
