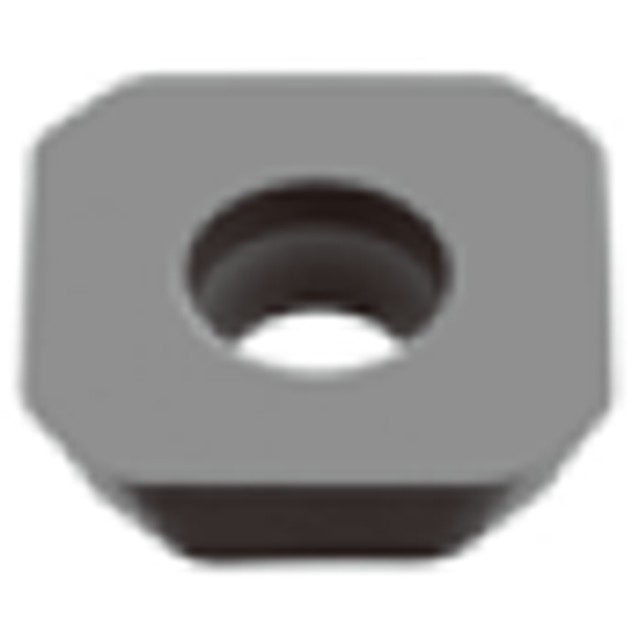

Tungaloy 6774946 | SWMW13T3AFTR T3225 0.547" Diameter x 0.157" Thickness x 0.059" Radius Carbide Milling Insert

$15.96 $13.25
(You save $2.71)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T3225
Width (Inch):
35/64"
Width (Decimal Inch):
0.5470"
Width (mm):
13.89mm
Inscribed Circle (Inch):
35/64"
Inscribed Circle (Decimal Inch):
0.5470"
Inscribed Circle (mm):
13.89mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
SKU:
23130056
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Flat-top insert with excellent impact resistance.


Product Specifications
Manufacturer Part Number6774946
Corner Radius (Inch)0.059"
Depth of Cut Maximum (Inch)0.197"
Inscribed Circle Diameter (Inch)0.547"
Insert Thickness (Inch)0.157"
Insert Width (Inch)0.547"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges4
Wiper Edge Length0.079"
ApplicationFace Milling
Body MaterialCarbide
GradeT3225
Applicable MaterialSteel, Stainless Steel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T3225
Width (Inch):
35/64"
Width (Decimal Inch):
0.5470"
Width (mm):
13.89mm
Inscribed Circle (Inch):
35/64"
Inscribed Circle (Decimal Inch):
0.5470"
Inscribed Circle (mm):
13.89mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
