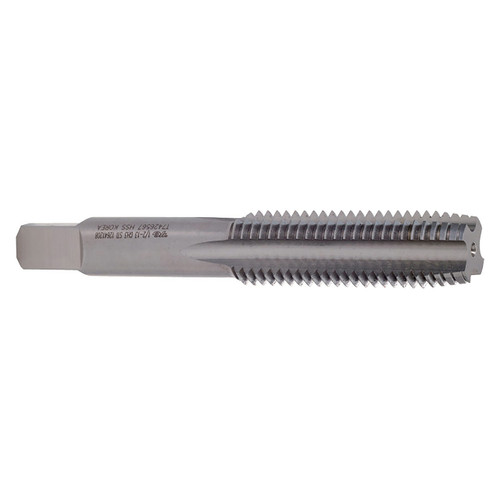

YG1 T7405287 | M M5 x 0.80mm Size x 1.000" Thread Length x 0.255" Shank x 2.500" OAL D3 Plug Chamfer 3 Flute Bright Coated HSS T7405 Hand STI Tap

Brand:

YG1

Thread Size (Decimal Inch):

0.1969"

Thread Size (mm):

5.00mm

Thread Limit:

D3

Number of Flutes:

3

Chamfer:

Plug

Finish/Coating:

Bright

Material:

HSS

Overall Length (Decimal Inch):

2.5000"

Overall Length (mm):

63.50mm

Thread Length (Decimal inch):

1.0000"

Thread Length (mm):

25.40mm

Shank Diameter (Decimal inch):

0.2550"

Shank Diameter (mm):

6.48mm

Thread Standard:

322A

Square Length (Decimal Inch):

0.1910"

Square Length (mm):

4.85mm

interval quantity:

1

SKU:

15011938

UPC:

Weight:

0.03 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
