| Manufacturer Part Number | T7405247 |
| Thread Size | M4 |
| Thread Size (Decimal Inch) | 0.158" |
| Thread Size (mm) | 4.00mm |
| Pitch (mm) | 0.70mm |
| Thread Series | M |
| Pitch Limit | D3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 2.380" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.880" |
| Thread Length (mm) | 22.35mm |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.194" |
| Shank Diameter (mm) | 4.93mm |
| Square Size (Decimal Inch) | 0.152" |
| Square Size (mm) | 3.86mm |
| Drill Size (Decimal Inch) | 0.165" |
| Drill Size (mm) | 4.20mm |
| Connection Size (Decimal Inch) | 0.194" x 0.152" |
| Connection Size (mm) | 4.93 x 3.86mm |
| Usable Length (Decimal Inch) | 0.880" |
| Usable Length (mm) | 22.35mm |
| Length / Diameter | 2.0 x D |
| Number of Flutes | 3 |
| Coating | Bright |
| Material | HSS |
| Blank Standard | 322A |
| Series | T7405 |

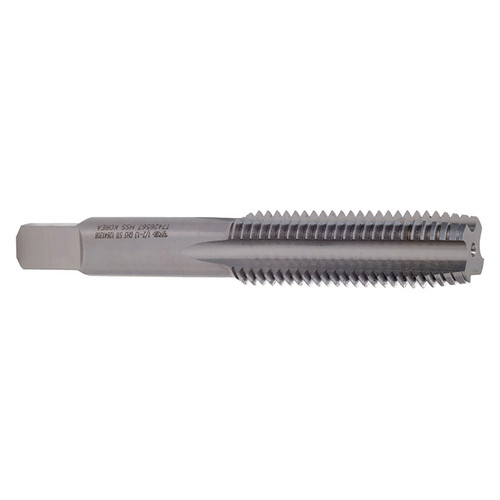

| Product Type | Hand STI Tap |
