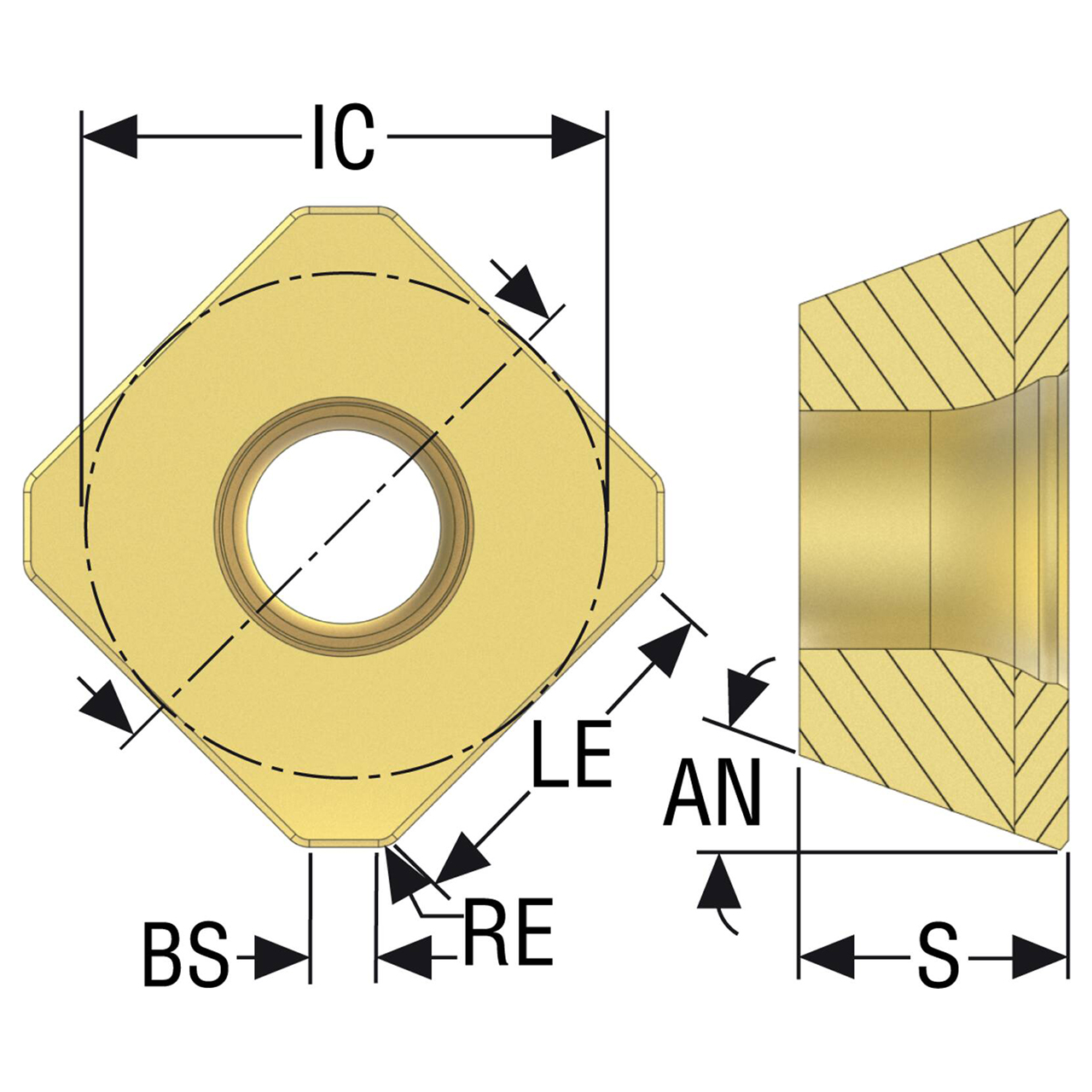

Product Specifications
| Manufacturer Part Number | 02457203 |
| Fixing Hole Diameter (Decimal Inch) | 0.138" |
| Fixing Hole Diameter (mm) | 3.50mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.52mm |
| Wiper Edge Length (Decimal Inch) | 0.049" |
| Wiper Edge Length (mm) | 1.25mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.113" |
| Cutting Edge Effective Length (mm) | 2.86mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 20 Degree |
| Cutting Edge Condition Code | T |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | D09 |
| Pocket Seat Code of The Cutter | SE.X09T3 |
| Insert Size And Shape | SEEX09T3 |
| Material | PCBN |
| Product Type | Milling Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

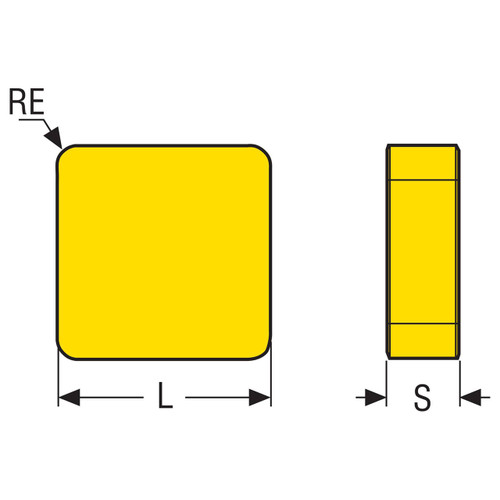

Related Products
Brand:
Seco Tools
Material:
PCBN
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.97mm
