Product Specifications
| Manufacturer Part Number | VS031M |
| Body Diameter 1 (Inch) | 37/94" |
| Body Diameter 1 (Decimal Inch) | 0.3937" |
| Body Diameter 1 (mm) | 10.00mm |
| Connection Machine Side (mm) | 20.00mm |
| Connection Work Side (Decimal Inch) | 0.157" |
| Connection Machine Side (Decimal Inch) | 0.7874" |
| Connection Machine Side (Inch) | 37/47" |
| Connection Work Side (Inch) | 3/19" |
| Connect Work Side (mm) | 4.00mm |
| Overall Length (Inch) | 4-71/98" |
| Overall Length (Decimal Inch) | 4.7244" |
| Overall Length (mm) | 120.00mm |
| Body Length (Inch) | 2-1/2" |
| Body Length (Decimal Inch) | 2.5012" |
| Body Length (mm) | 63.53mm |
| Clamping Length (Inch) | 43/91" |
| Clamping Length (Decimal Inch) | 0.4724" |
| Clamping Length (mm) | 12.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |

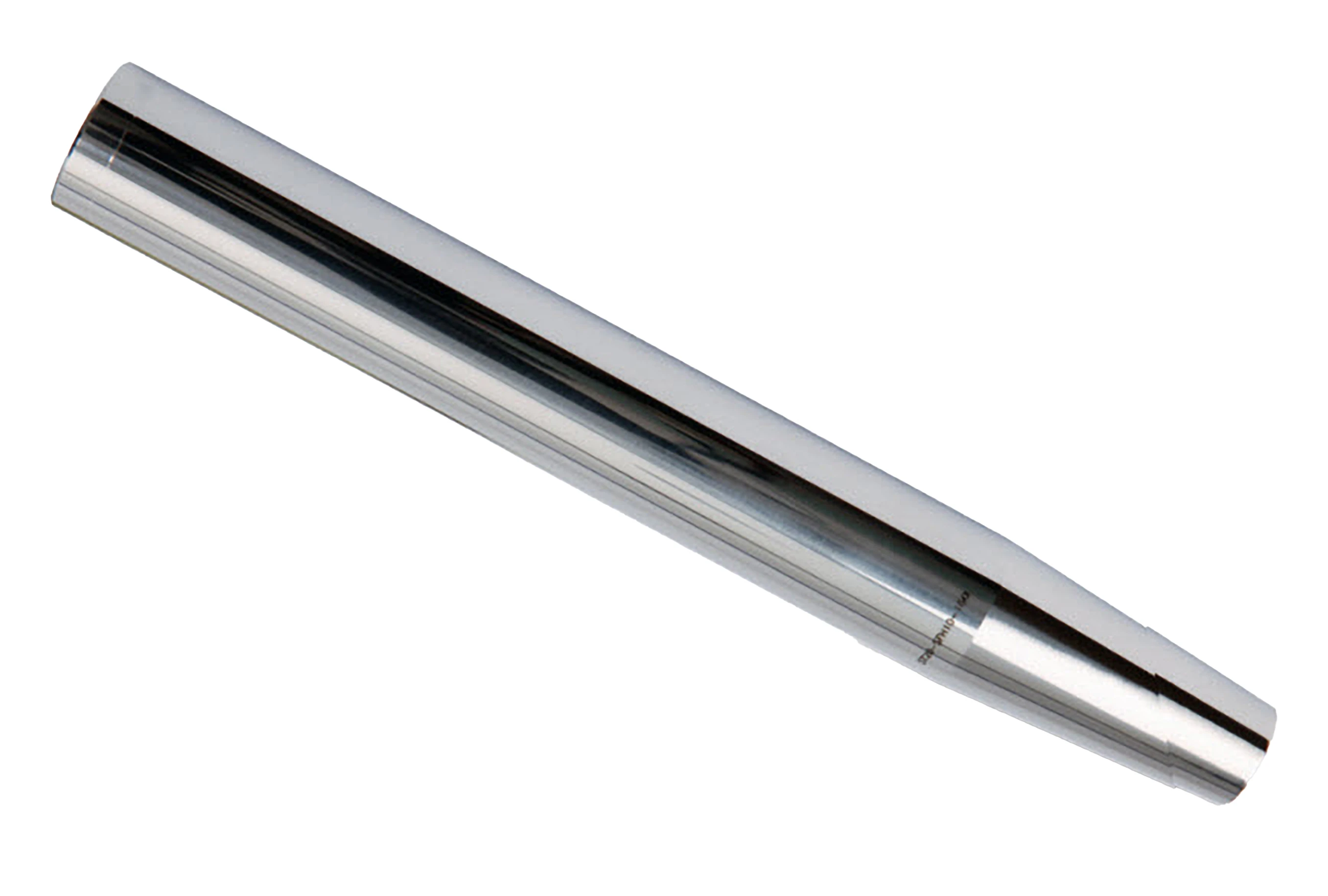

| Product Type | Shank Shrink Fit Extension |
